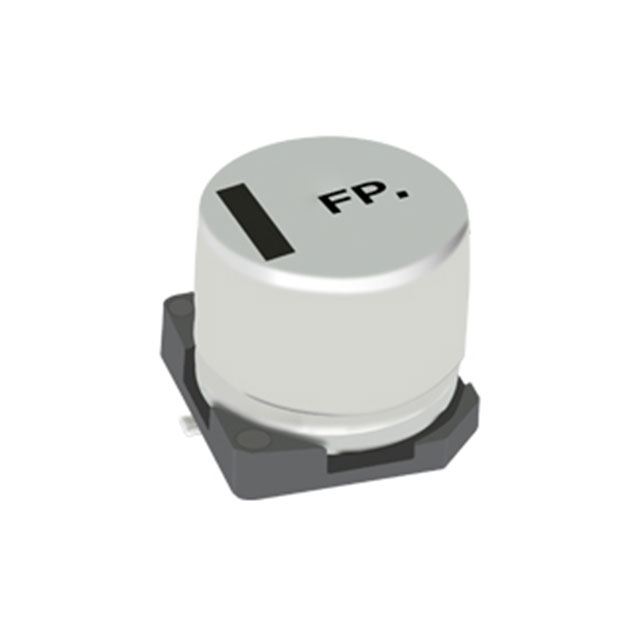

EEE-FPC Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM 820UF 20% 16V SMD

Part	Voltage - Rated	Ripple Current @ Low Frequency	Polarization	Mounting Type	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Tolerance	Lifetime @ Temp.	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales EEE-FPC821UAP	16 V	552.5 mA	Polar	Surface Mount	850 mA	80 mOhm	10 mm	0.394 in	105 ░C	-55 °C	AEC-Q200	20 %	2000 Hrs	820 µF	10.2 mm	0.402 "	Automotive	10.3 mm	0.406 in	10.3 mm	0.406 "	Radial Can - SMD
Panasonic Industrial Automation Sales EEE-FPC221XAL	16 V	390 mA	Polar	Surface Mount	600 mA	160 mOhm	6.3 mm	0.248 in	105 ░C	-55 °C	AEC-Q200	20 %	2000 Hrs	220 µF	8 mm	0.315 in	Automotive	6.6 mm	0.26 in	6.6 mm	0.26 in	Radial Can - SMD
Panasonic Industrial Automation Sales EEE-FPC151XAL	16 V	390 mA	Polar	Surface Mount	600 mA	160 mOhm	6.3 mm	0.248 in	105 ░C	-55 °C	AEC-Q200	20 %	2000 Hrs	150 µF	8 mm	0.315 in	Automotive	6.6 mm	0.26 in	6.6 mm	0.26 in	Radial Can - SMD
Panasonic Industrial Automation Sales EEE-FPC101XAP	16 V	390 mA	Polar	Surface Mount	600 mA	160 mOhm	6.3 mm	0.248 in	105 ░C	-55 °C	AEC-Q200	20 %	2000 Hrs	100 µF			Automotive	6.6 mm	0.26 in	6.6 mm	0.26 in	Radial Can - SMD	0.303 in	7.7 mm
Panasonic Industrial Automation Sales EEE-FPC101XAL	16 V	390 mA	Polar	Surface Mount	600 mA	160 mOhm	6.3 mm	0.248 in	105 ░C	-55 °C	AEC-Q200	20 %	2000 Hrs	100 µF	8 mm	0.315 in	Automotive	6.6 mm	0.26 in	6.6 mm	0.26 in	Radial Can - SMD
Panasonic Industrial Automation Sales EEE-FPC470UAR	16 V	156 mA	Polar	Surface Mount	240 mA	360 mOhm	5 mm	0.197 "	105 ░C	-55 °C	AEC-Q200	20 %	2000 Hrs	47 µF	5.8 mm	0.228 "	Automotive	5.3 mm	0.209 in	5.3 mm	0.209 in	Radial Can - SMD
Panasonic Industrial Automation Sales EEE-FPC221XAP	16 V	390 mA	Polar	Surface Mount	600 mA	160 mOhm	6.3 mm	0.248 in	105 ░C	-55 °C	AEC-Q200	20 %	2000 Hrs	220 µF			Automotive	6.6 mm	0.26 in	6.6 mm	0.26 in	Radial Can - SMD	0.303 in	7.7 mm
Panasonic Industrial Automation Sales EEE-FPC221XAV	16 V	390 mA	Polar	Surface Mount	600 mA	160 mOhm	6.3 mm	0.248 in	105 ░C	-55 °C	AEC-Q200	20 %	2000 Hrs	220 µF	8.3 mm	0.327 in	Automotive High Temperature Reflow	6.6 mm	0.26 in	6.6 mm	0.26 in	Radial Can - SMD
