051191 Series

Manufacturer: Molex

Catalog

CONN RCPT HSG 8POS 2.50MM

Part	Insulation Material	Number of Rows	Note	Mounting Type	Connector Type	Contact Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Positions

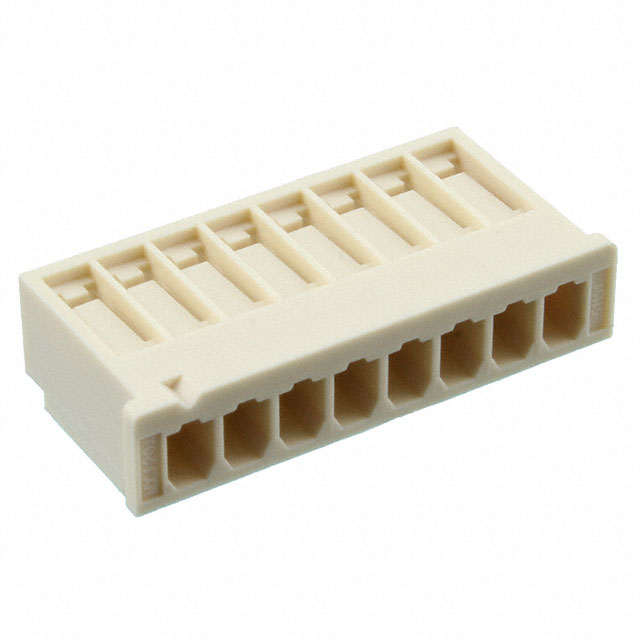

Molex 0511910800	Polyamide (PA66) Nylon 6/6	1	Contacts Not Included	Free Hanging (In-Line)	Receptacle	Female Socket	Crimp	-40 °C	105 ░C	0.098 in	2.5 mm	8

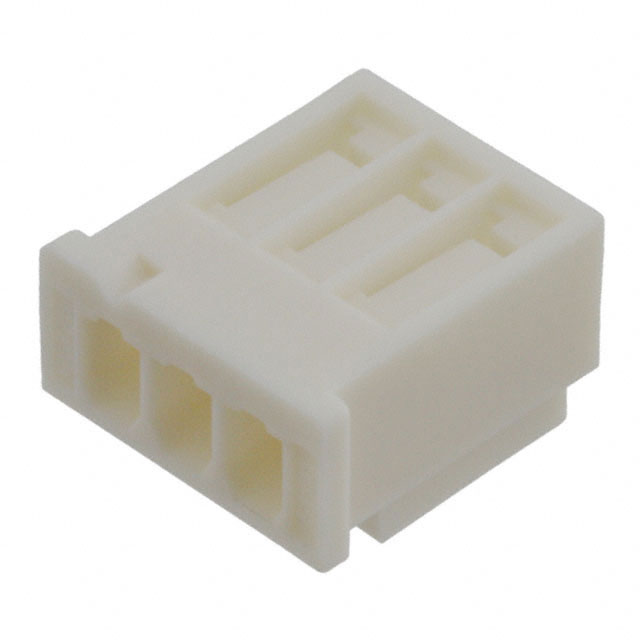

Molex 0511910300	Polyamide (PA66) Nylon 6/6	1	Contacts Not Included	Free Hanging (In-Line)	Receptacle	Female Socket	Crimp	-40 °C	105 ░C	0.098 in	2.5 mm

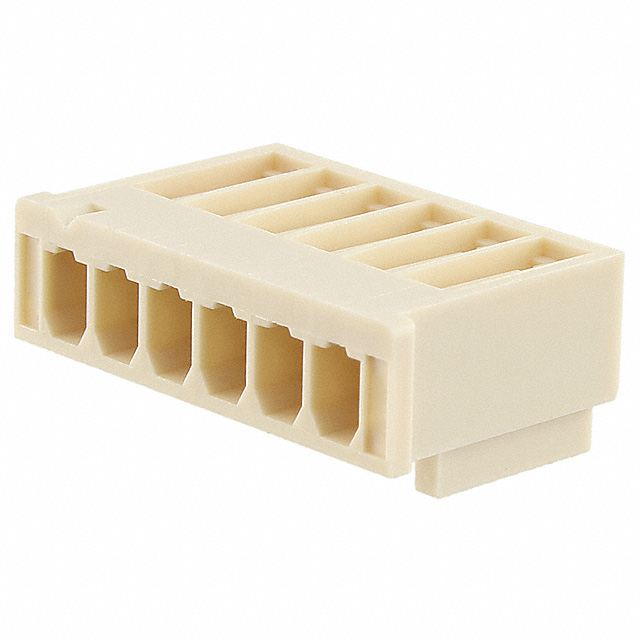

Molex 0511910600	Polyamide (PA66) Nylon 6/6	1	Contacts Not Included	Free Hanging (In-Line)	Receptacle	Female Socket	Crimp	-40 °C	105 ░C	0.098 in	2.5 mm	6

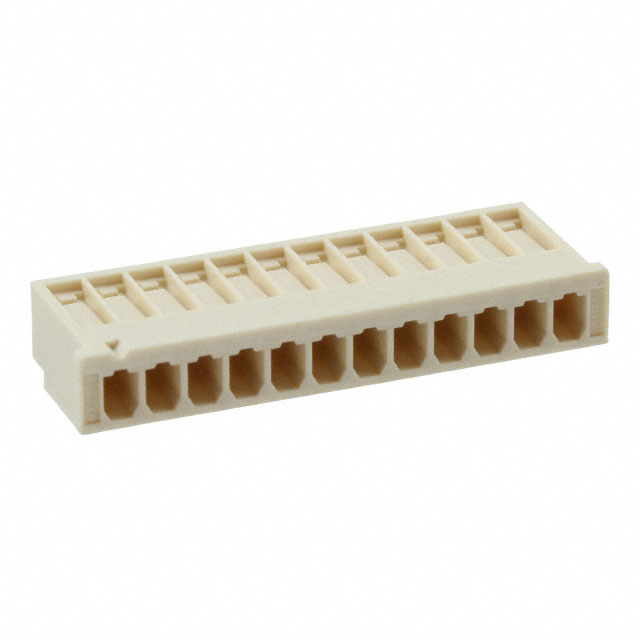

Molex 0511911200	Polyamide (PA66) Nylon 6/6	1	Contacts Not Included	Free Hanging (In-Line)	Receptacle	Female Socket	Crimp	-40 °C	105 ░C	0.098 in	2.5 mm	12
Molex 0511911000	Polyamide (PA66) Nylon 6/6	1	Contacts Not Included	Free Hanging (In-Line)	Receptacle	Female Socket	Crimp	-40 °C	105 ░C	0.098 in	2.5 mm	10
Molex 0511911500	Polyamide (PA66) Nylon 6/6	1	Contacts Not Included	Free Hanging (In-Line)	Receptacle	Female Socket	Crimp	-40 °C	105 ░C	0.098 in	2.5 mm	15
