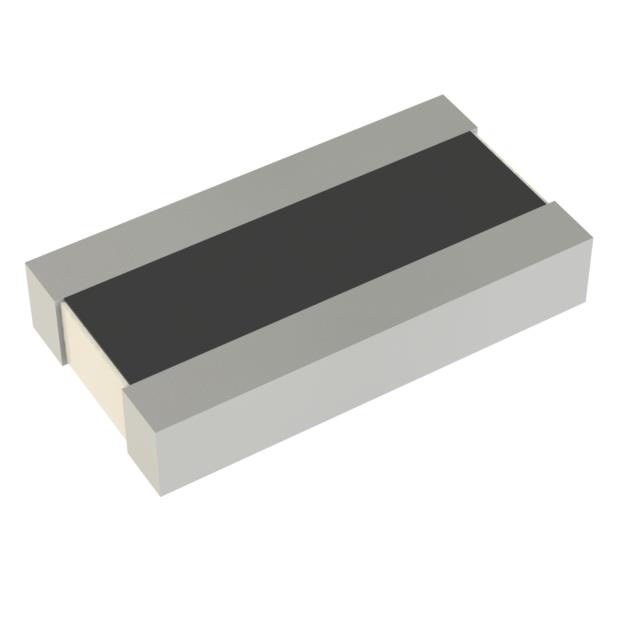

PE0612F Series
Manufacturer: YAGEO
Beta
⌘K
RES 0.1 OHM 1% 2W 1206 WIDE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Temperature Coefficient | Package / Case | Power (Watts) | Number of Terminations [custom] | Supplier Device Package | Resistance | Ratings | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Features | Composition | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YAGEO | 155 C | -55 C | 75 ppm/°C | 0612 Wide 1206 (3216 Metric) | 2 W | 2 | 0612 | 0.1 Ohms | AEC-Q200 | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | Automotive AEC-Q200 Current Sense | Metal Element | 0.03 " | 0.75 mm | 1 % |
YAGEO | 155 C | -55 C | 100 ppm/°C | 0612 Wide 1206 (3216 Metric) | 1 W | 2 | 0612 | 16 mOhms | AEC-Q200 | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | Automotive AEC-Q200 Current Sense | Metal Element | 0.03 " | 0.75 mm | 1 % |
YAGEO | 155 C | -55 C | 100 ppm/°C | 0612 Wide 1206 (3216 Metric) | 1 W | 2 | 0612 | 0.02 Ohms | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | Current Sense | Metal Element | 0.03 " | 0.75 mm | 1 % | |
YAGEO | 155 C | -55 C | 50 ppm/░C | 0612 Wide 1206 (3216 Metric) | 1 W | 2 | 0612 | 220 mOhms | AEC-Q200 | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | Automotive AEC-Q200 Current Sense | Metal Element | 0.03 " | 0.75 mm | 1 % |
YAGEO | 155 C | -55 C | 100 ppm/°C | 0612 Wide 1206 (3216 Metric) | 1 W | 2 | 0612 | 39 mOhms | AEC-Q200 | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | Automotive AEC-Q200 Current Sense | Metal Element | 0.03 " | 0.75 mm | 1 % |
YAGEO | 155 C | -55 C | 100 ppm/°C | 0612 Wide 1206 (3216 Metric) | 1 W | 2 | 0612 | 3 mOhms | AEC-Q200 | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | Automotive AEC-Q200 Current Sense | Metal Element | 0.03 " | 0.75 mm | 1 % |
YAGEO | 155 C | -55 C | 50 ppm/░C | 0612 Wide 1206 (3216 Metric) | 1 W | 2 | 0612 | 240 mOhms | AEC-Q200 | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | Automotive AEC-Q200 Current Sense | Metal Element | 0.03 " | 0.75 mm | 1 % |
YAGEO | 155 C | -55 C | 50 ppm/░C | 0612 Wide 1206 (3216 Metric) | 2 W | 2 | 0612 | AEC-Q200 | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | Automotive AEC-Q200 Current Sense | Metal Element | 0.03 " | 0.75 mm | 1 % | |
YAGEO | 155 C | -55 C | 100 ppm/°C | 0612 Wide 1206 (3216 Metric) | 1 W | 2 | 0612 | 10 mOhms | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | Current Sense | Metal Element | 0.03 " | 0.75 mm | 1 % | |
YAGEO | 155 C | -55 C | 100 ppm/°C | 0612 Wide 1206 (3216 Metric) | 1 W | 2 | 0612 | 33 mOhms | AEC-Q200 | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | Automotive AEC-Q200 Current Sense | Metal Element | 0.03 " | 0.75 mm | 1 % |
