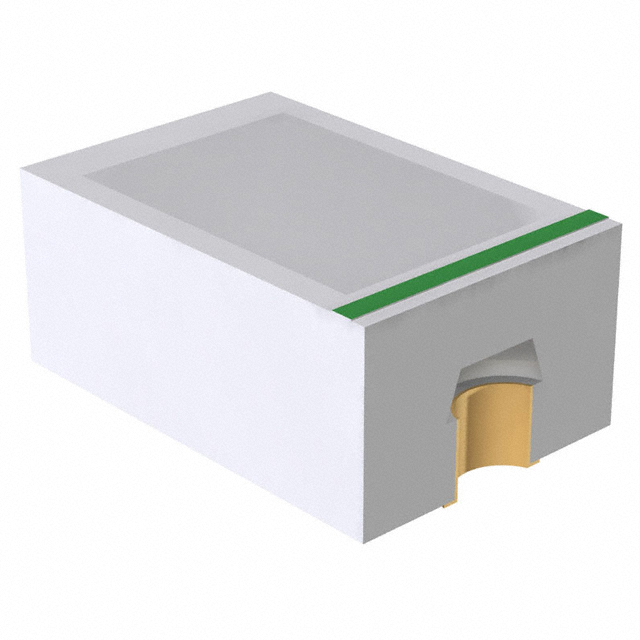

SML-010 Series

Catalog

LED RED CLEAR 3020 SMD

Part	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Configuration	Lens Size [y]	Lens Size [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Mounting Type	Height (Max) [z]	Supplier Device Package	Millicandela Rating	Lens Transparency	Color	Lens Style	Current - Test	Lens Color
Rohm Semiconductor SML-010LTT87	660 nm	1.75 V	Standard	1.6 mm	2.3 mm	3 mm	2 mm	1208 (3020 Metric)	Surface Mount	1.5 mm	3020(1208)	16 mcd	Clear	Red	Rectangle with Flat Top	20 mA	Colorless

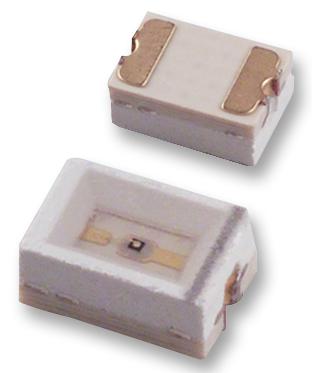

Rohm Semiconductor SML-010PTT86	555 nm	2.2 V	Standard	1.6 mm	2.3 mm	3 mm	2 mm	1208 (3020 Metric)	Surface Mount	1.5 mm	3020(1208)	6.3 mcd	Clear	Green	Rectangle with Flat Top	20 mA	Colorless
Rohm Semiconductor SML-010MTT87	563 nm	2.2 V	Standard	1.6 mm	2.3 mm	3 mm	2 mm	1208 (3020 Metric)	Surface Mount	1.5 mm	3020(1208)	16 mcd	Clear	Green	Rectangle with Flat Top	20 mA	Colorless
Rohm Semiconductor SML-010YTT86	585 nm	2.1 V	Standard	1.6 mm	2.3 mm	3 mm	2 mm	1208 (3020 Metric)	Surface Mount	1.5 mm	3020(1208)	6.3 mcd	Clear	Yellow	Rectangle with Flat Top	20 mA	Colorless
Rohm Semiconductor SML-010DTT86	610 nm	2 V	Standard	1.6 mm	2.3 mm	3 mm	2 mm	1208 (3020 Metric)	Surface Mount	1.5 mm	3020(1208)	10 mcd	Clear		Rectangle with Flat Top	20 mA	Colorless
Rohm Semiconductor SML-010LTT86	660 nm	1.75 V	Standard	1.6 mm	2.3 mm	3 mm	2 mm	1208 (3020 Metric)	Surface Mount	1.5 mm	3020(1208)	16 mcd	Clear	Red	Rectangle with Flat Top	20 mA	Colorless
