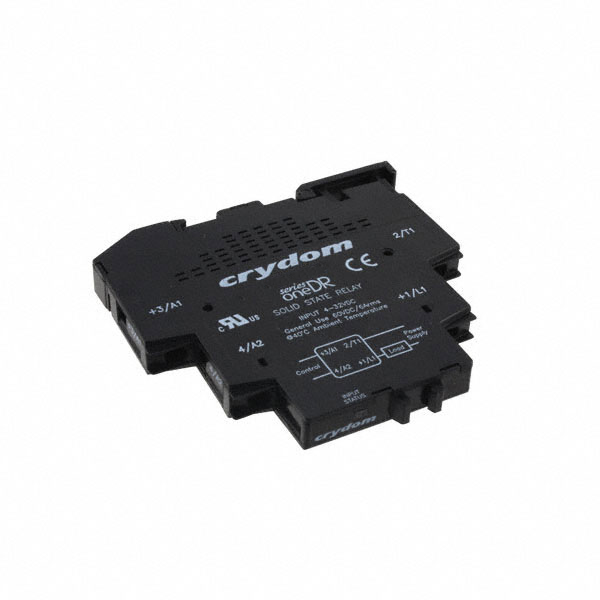

DR06D06 Series
Manufacturer: Sensata-Crydom
Beta
⌘K
SSR RELAY SPST-NO 6A 1-60V
| Part | Approval Agency | Voltage - Load [Max] | Voltage - Load [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Load Current | On-State Resistance (Max) [Max] | Mounting Type | Output Type | Package / Case | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | CE cULus | 60 V | 1 V | 32 VDC | 4 V | -20 ░C | 40 °C | 6 A | 100 mOhm | DIN Rail | DC | Module | Screw Terminal |
