325-120 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FML 120POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Color | Termination | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Number of Positions/Bay/Row [custom] | Contact Type | Card Type | Mounting Type | Card Thickness | Card Thickness | Contact Material | Read Out | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

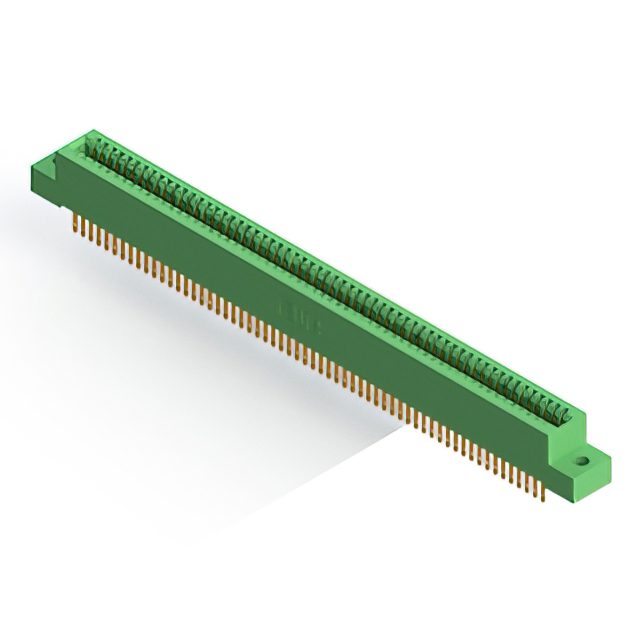

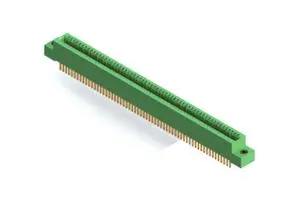

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Solder Eyelet(s) | Female | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | -65 ░C | 125 °C | Gold | 60 | Cantilever | Non Specified - Dual Edge | Through Hole | 3.18 mm | 0.125 in | Copper Alloy | Dual | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 120 | 2 |

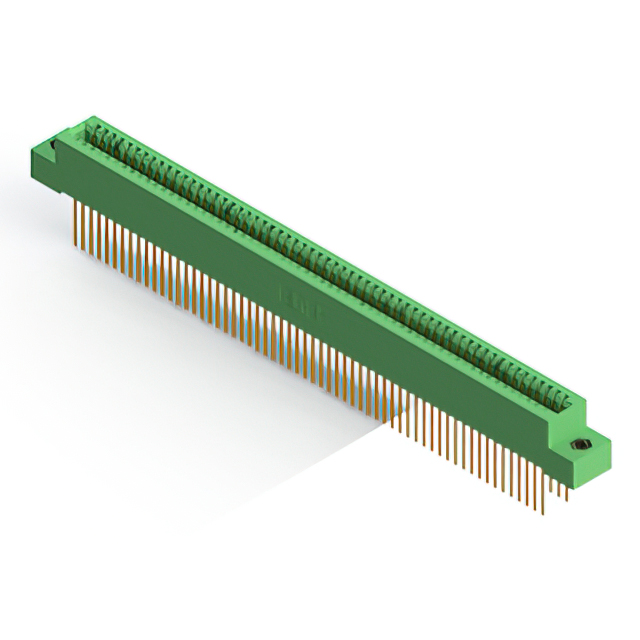

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Wire Wrap | Female | Flush Mount M3 Threaded Insert Top Opening | -65 ░C | 125 °C | Gold | 60 | Cantilever | Non Specified - Dual Edge | Through Hole | 3.18 mm | 0.125 in | Copper Alloy | Dual | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 120 | 2 | ||

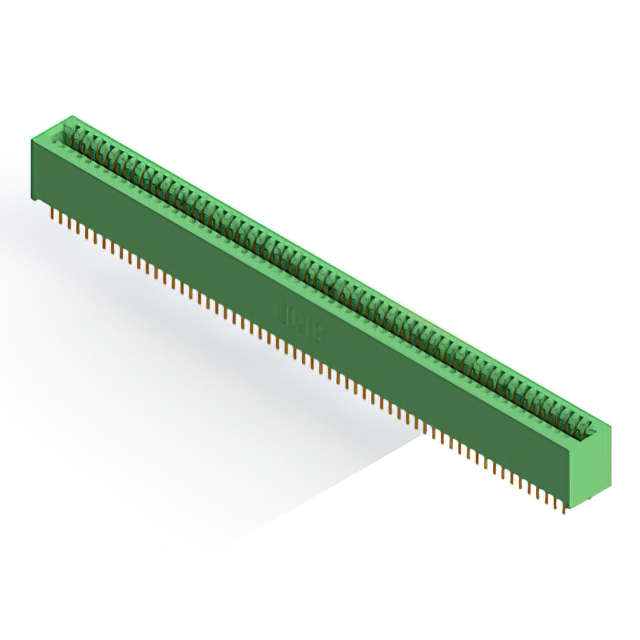

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Solder | Female | -65 ░C | 125 °C | Gold | 60 | Cantilever | Non Specified - Dual Edge | Through Hole | 3.18 mm | 0.125 in | Copper Alloy | Dual | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 120 | 2 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Solder | Female | 4-40 Flush Mount Threaded Insert Top Opening | -65 ░C | 125 °C | Gold | 60 | Cantilever | Non Specified - Dual Edge | Through Hole | 3.18 mm | 0.125 in | Copper Alloy | Dual | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 120 | 2 | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Wire Wrap | Female | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | -65 ░C | 125 °C | Gold | 60 | Cantilever | Non Specified - Dual Edge | Through Hole | 3.18 mm | 0.125 in | Copper Alloy | Dual | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 120 | 2 |
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Solder Eyelet(s) | Female | Flush Mount M3 Threaded Insert Top Opening | -65 ░C | 125 °C | Gold | 60 | Cantilever | Non Specified - Dual Edge | Through Hole | 3.18 mm | 0.125 in | Copper Alloy | Dual | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 120 | 2 |
