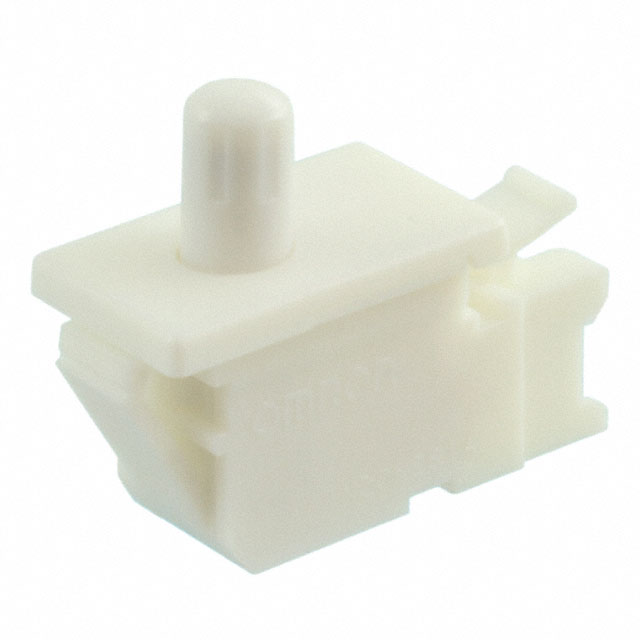

D3DC-2 Series
Manufacturer: Omron Electronics Inc-EMC Div
Catalog
SWITCH SNAP ACT SPST-NC 0.1A 30V
| Part | Electrical Life | Circuit | Operating Position [custom] | Operating Position [custom] | Termination Style | Voltage Rating - DC | Switch Function | Current Rating (Amps) | Actuator Type | Mounting Type | Ingress Protection | Operating Force | Mechanical Life | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 100000 Cycles | SPST-NC | 6.7 mm | 0.264 " | Connector | 30 V | On-Mom | 100 mA | Round (Pin Plunger) | Panel Mount Snap-In | IP00 | 102 gf | 100000 Cycles | -25 °C | 85 °C |
