ADC12 Series

Catalog

IC ADC 12BIT 48HTQFP

Part	Sampling Rate (Per Second)	Number of A/D Converters	Reference Type	Input Type	Supplier Device Package	Number of Inputs	Voltage - Supply, Digital	Number of Bits	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Analog	Package / Case	Ratio - S/H:ADC	Data Interface	Configuration	Mounting Type	Architecture	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Features
Freescale Semiconductor - NXP ADC1207S080HW/C1,5	80 M	1	Internal	Differential	48-HTQFP (7x7)	1	5 V	12 bits	85 °C	-40 °C	5 V	48-TQFP Exposed Pad	1:1	Parallel	S/H-ADC	Surface Mount
Freescale Semiconductor - NXP ADC1207S080HW/C1:5	80 M	1	Internal	Differential	48-HTQFP (7x7)	1	5 V	12 bits	85 °C	-40 °C	5 V	48-TQFP Exposed Pad	1:1	Parallel	S/H-ADC	Surface Mount
Freescale Semiconductor - NXP ADC1210S080HN/C1:5	80 M	1	External Internal	Differential Single Ended	40-HVQFN (6x6)	1		12 bits	85 °C	-40 °C		40-VFQFN Exposed Pad	1:1	LVDS - Parallel Parallel	S/H-ADC	Surface Mount	Pipelined	3.4 V	2.85 V	2.85 V	3.4 V

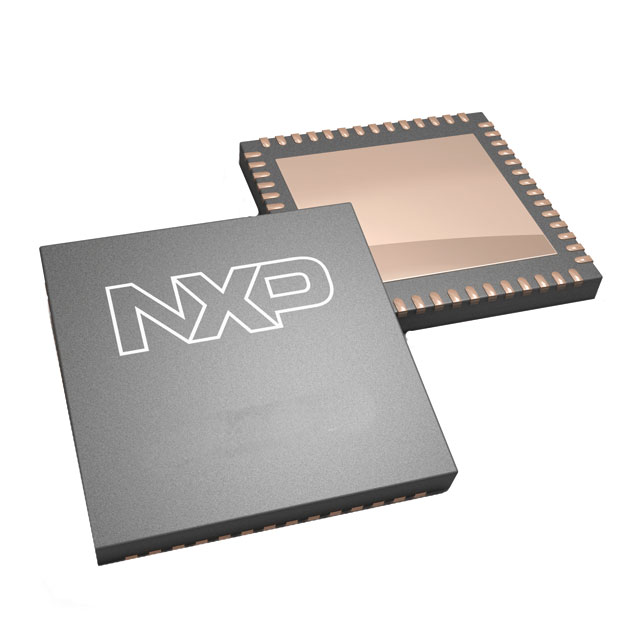

Freescale Semiconductor - NXP ADC1213D080HN/C1/5	80 M	2	External Internal	Differential Single Ended	56-HVQFN (8x8)	2		12 bits	85 °C	-40 °C		56-VFQFN Exposed Pad	1:1	JESD204A	S/H-ADC	Surface Mount	Pipelined	3.4 V	2.85 V	1.65 V	1.95 V	Simultaneous Sampling
Freescale Semiconductor - NXP ADC1210S125HN/C1:5	125 M	1	External Internal	Differential Single Ended	40-HVQFN (6x6)	1		12 bits	85 °C	-40 °C		40-VFQFN Exposed Pad	1:1	LVDS - Parallel Parallel	S/H-ADC	Surface Mount	Pipelined	3.4 V	2.85 V	2.85 V	3.4 V
