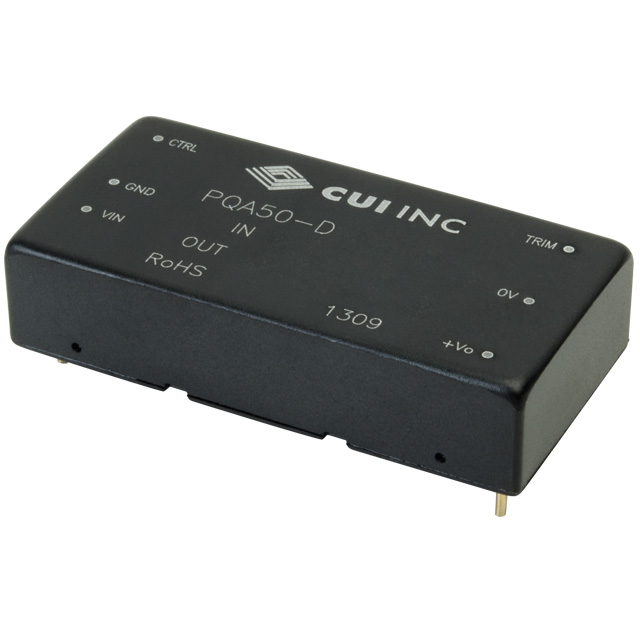

PQA50 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 15V 50W
| Part | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Package / Case | Voltage - Isolation | Control Features | Voltage - Input (Max) [Max] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Applications | Mounting Type | Efficiency | Current - Output (Max) [Max] | Type | Number of Outputs | Standard Number | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 0.47 " | 25.4 mm | 1 " | 50.8 mm | 2 in | 11.8 mm | 6-DIP Module | 1.5 kV | Active High Enable | 75 V | 15 V | 36 V | OCP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | 50 W | ITE (Commercial) | Through Hole | 93 % | 3.333 A | Isolated Module | 1 | ||

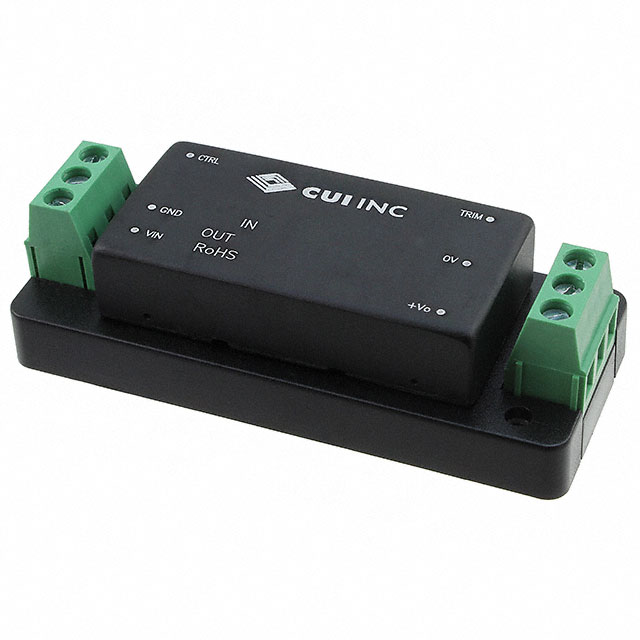

 CUI Inc. | 0.84 in | 31.5 mm | 1.24 in | 76 mm | 2.99 in | 21.2 mm | 1.5 kV | 36 V | 12 V | 18 V | 85 °C | -40 C | 50 W | Chassis Mount | 91 % | 4.17 A | Enclosed | 1 | ||||||

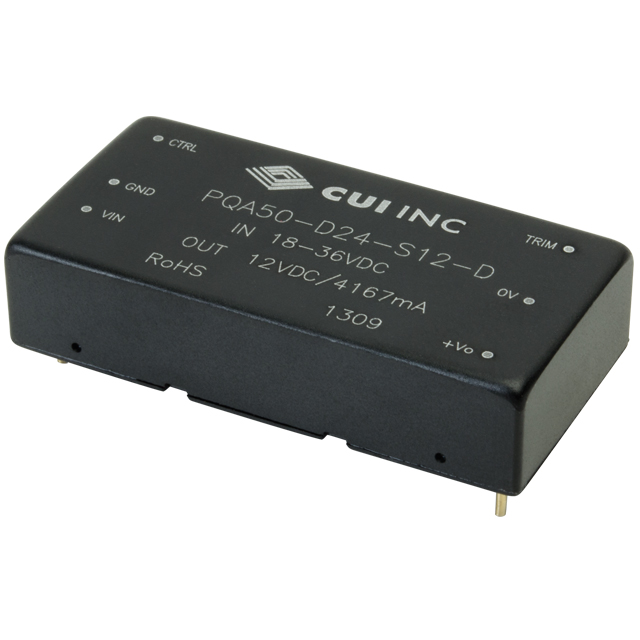

CUI Inc. | 0.47 " | 25.4 mm | 1 " | 50.8 mm | 2 in | 11.8 mm | 6-DIP Module | 1.5 kV | Active High Enable | 36 V | 12 V | 18 V | OCP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | 50 W | ITE (Commercial) | Through Hole | 93 % | 4.167 A | Isolated Module | 1 | ||
CUI Inc. | 0.84 in | 31.5 mm | 1.24 in | 76 mm | 2.99 in | 21.2 mm | 1.5 kV | 36 V | 24 V | 18 V | 85 °C | -40 C | 50 W | Chassis Mount | 91 % | 2.08 A | Enclosed | 1 | ||||||
CUI Inc. | 0.84 in | 31.5 mm | 1.24 in | 76 mm | 2.99 in | 21.2 mm | 1.5 kV | 36 V | 15 V | 18 V | 85 °C | -40 C | 50 W | Chassis Mount | 91 % | 3.33 A | Enclosed | 1 | ||||||
CUI Inc. | 0.84 in | 31.5 mm | 1.24 in | 76 mm | 2.99 in | 21.2 mm | 1.5 kV | 75 V | 12 V | 36 V | 85 °C | -40 C | 50 W | Chassis Mount | 91 % | 4.17 A | Enclosed | 1 | 60950-1 | CB Scheme IEC | ||||
 CUI Inc. | 0.46 in | 25.4 mm | 1 " | 50.8 mm | 2 in | 11.8 mm | 6-DIP Module | 1.5 kV | 75 V | 3.3 V | 36 V | OCP OTP OVP Remote On/Off SCP | 85 °C | -40 °C | 33 W | ITE (Commercial) | Through Hole | 91 % | 10 A | Isolated Module | 1 | |||
CUI Inc. | 0.47 " | 25.4 mm | 1 " | 50.8 mm | 2 in | 11.8 mm | 6-DIP Module | 1.5 kV | Active High Enable | 75 V | 5 V | 36 V | OCP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | 50 W | ITE (Commercial) | Through Hole | 93 % | 10 A | Isolated Module | 1 | ||
CUI Inc. | 0.47 " | 25.4 mm | 1 " | 50.8 mm | 2 in | 11.8 mm | 6-DIP Module | 1.5 kV | Active High Enable | 36 V | 5 V | 18 V | OCP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | 50 W | ITE (Commercial) | Through Hole | 93 % | 10 A | Isolated Module | 1 | ||
CUI Inc. | 0.47 " | 25.4 mm | 1 " | 50.8 mm | 2 in | 11.8 mm | 6-DIP Module | 1.5 kV | Active High Enable | 75 V | 12 V | 36 V | OCP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | 50 W | ITE (Commercial) | Through Hole | 93 % | 4.167 A | Isolated Module | 1 | 60950-1 | CB Scheme IEC |
