LCC2 Series

Catalog

CONN TERM RECT TONG 2 AWG #1/4

Part	Contact Material	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Terminal Type	Wire Gauge	Stud/Tab Size	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Terminal Style	Mounting Type	Termination	Tab Thickness	Tab Thickness [custom]	Color	Contact Finish	Length - Overall [x]	Length - Overall [x]	Tab Thickness	Stud/Tab Size	Diameter - Ring ID [diameter]	Length - Overall
Panduit Corp LCC2-14BH-Q	Copper	15.24 mm	0.6 in	Non-Insulated	10.67 mm	0.42 in	6.86 mm	0.27 "	Rectangular Tongue	2 AWG	0.25 Stud	7.87 mm	0.31 in	Two Stud Holes	45° Angle Free Hanging (In-Line)	Barrel Crimp	2.54 mm	0.1 in	Brown	Electro-Tin
Panduit Corp LCC2/0-12W-X	Copper	21.59 mm	0.85 in	Non-Insulated	14.73 mm	0.58 in	0.53 in		Rectangular Tongue			11.43 mm	0.45 in	Two Stud Holes	Free Hanging (In-Line)	Barrel Crimp	3.3 mm		Black	Electro-Tin	4.83 in	122.68 mm	0.13 in	1/2 Stud	13.46 mm

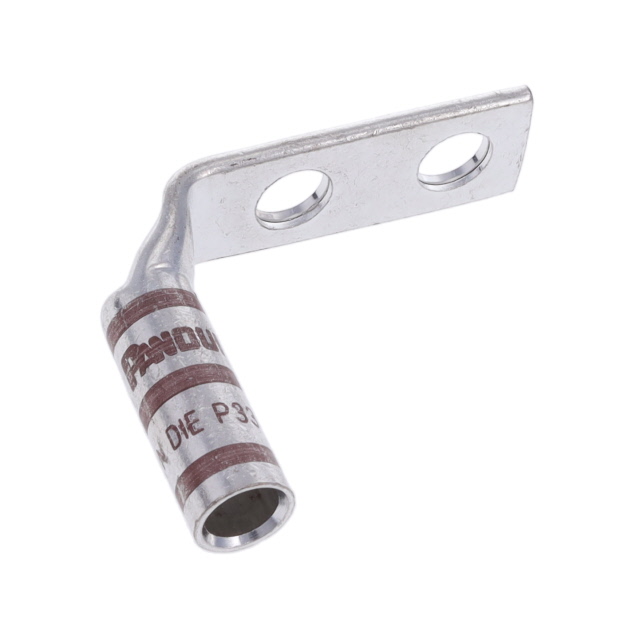

Panduit Corp LCC2-56BWF-Q	Copper	16.76 mm	0.66 in	Non-Insulated	10.67 mm	0.42 in	0.34 in		Rectangular Tongue	2 AWG	0.3125 Stud	7.87 mm	0.31 in	Two Stud Holes	Free Hanging (In-Line) Right Angle	Barrel Crimp	2.54 mm	0.1 in	Brown	Electro-Tin					8.64 mm

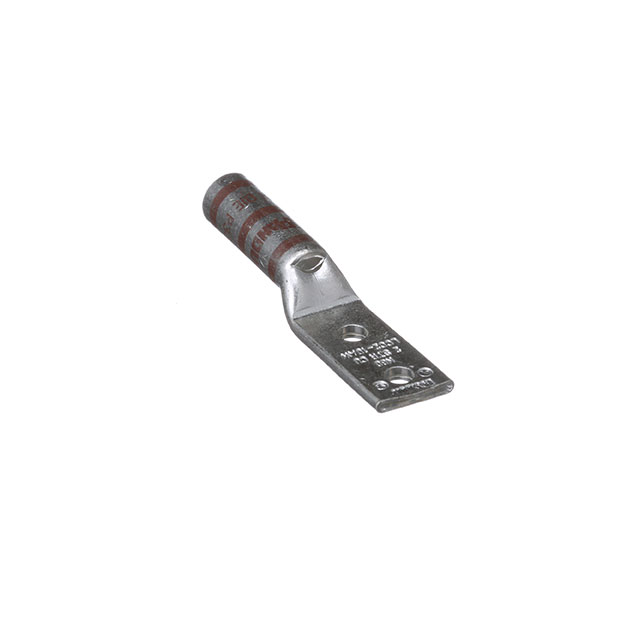

Panduit Corp LCC2-10AW-Q	Copper	15.24 mm	0.6 in	Non-Insulated	10.67 mm	0.42 in	5.08 mm	0.2 in	Rectangular Tongue	2 AWG	10 Stud	7.87 mm	0.31 in	Two Stud Holes	Free Hanging (In-Line)	Barrel Crimp	2.54 mm	0.1 in	Brown	Electro-Tin	2.57 in					65.28 mm

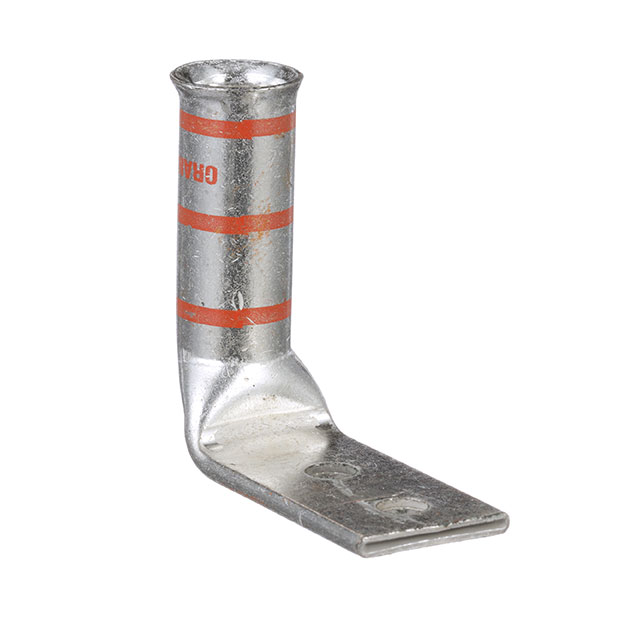

Panduit Corp LCC2/0-14AF-X	Copper	21.59 mm	0.85 in	Non-Insulated	14.73 mm	0.58 in	6.86 mm	0.27 "	Rectangular Tongue		0.25 Stud	11.43 mm	0.45 in	Two Stud Holes	Free Hanging (In-Line) Right Angle	Barrel Crimp	3.3 mm		Black	Electro-Tin			0.13 in
Panduit Corp LCC2-38H-Q	Copper	16.76 mm	0.66 in	Non-Insulated	10.67 mm	0.42 in	10.41 mm	0.41 "	Rectangular Tongue	2 AWG		7.87 mm	0.31 in	Two Stud Holes	45° Angle Free Hanging (In-Line)	Barrel Crimp	2.54 mm	0.1 in	Brown	Electro-Tin				3/8 Stud
Panduit Corp LCC2/0-14BWF-X	Copper	21.59 mm	0.85 in	Non-Insulated	14.73 mm	0.58 in	6.86 mm	0.27 "	Rectangular Tongue		0.25 Stud	11.43 mm	0.45 in	Two Stud Holes	Free Hanging (In-Line) Right Angle	Barrel Crimp	3.3 mm		Black	Electro-Tin			0.13 in
Panduit Corp LCC2/0-12WF-X	Copper	21.59 mm	0.85 in	Non-Insulated	14.73 mm	0.58 in	0.53 in		Rectangular Tongue			11.43 mm	0.45 in	Two Stud Holes	Free Hanging (In-Line) Right Angle	Barrel Crimp	3.3 mm		Black	Electro-Tin			0.13 in	1/2 Stud	13.46 mm
Panduit Corp LCC2-14AWH-Q	Copper	15.24 mm	0.6 in	Non-Insulated	10.67 mm	0.42 in	6.86 mm	0.27 "	Rectangular Tongue	2 AWG	0.25 Stud	7.87 mm	0.31 in	Two Stud Holes	45° Angle Free Hanging (In-Line)	Barrel Crimp	2.54 mm	0.1 in	Brown	Electro-Tin
Panduit Corp LCC2/0-12DF-X	Copper	21.59 mm	0.85 in	Non-Insulated	14.48 mm	0.57 in	0.53 in		Rectangular Tongue			11.18 mm	0.44 in	Two Stud Holes	Free Hanging (In-Line) Right Angle	Barrel Crimp	3.3 mm		Black	Electro-Tin			0.13 in	1/2 Stud	13.46 mm
