THA0412 Series

Catalog

DC FAN AXIAL BALL BEARING 12V 7V TO 13.2V 29.52CFM 59DB 40 X 40 X 28MM

Part	Material - Blade	Current Rating (Amps)	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Approval Agency	Voltage - Rated	Size / Dimension [x]	Size / Dimension [z]	Static Pressure	Static Pressure	Fan Type	Bearing Type	Noise	Weight	Weight	RPM	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Air Flow	Width [x]	Features	Termination	Power (Watts)	Width [y]	Ingress Protection

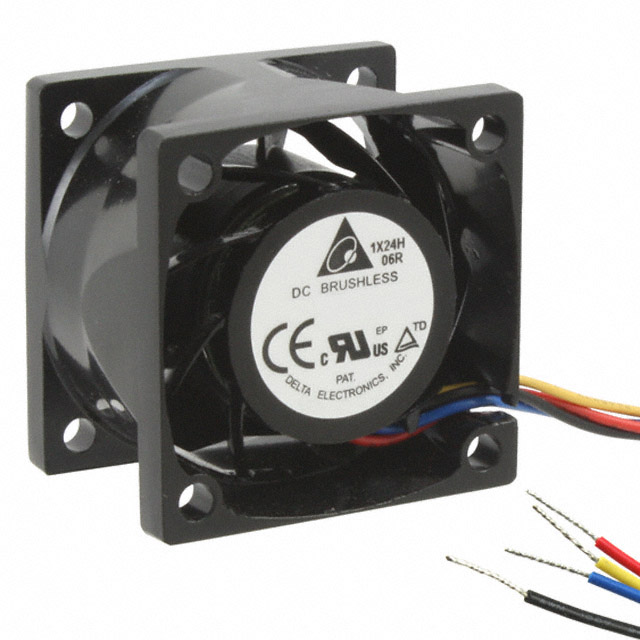

Delta Electronics THA0412BN	Plastic	0.89 A	70000 Hrs	7 V	13.2 VDC	Aluminum	CE cURus TUV	12 VDC	40 mm	40 mm	597.8 Pa	2.4 in H2O	Tubeaxial	Ball	59 dB(A)	46.27 g	0.102 lb	19000 RPM	70 °C	-10 °C	0.826 m³/min	29.5 CFM	28 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 Wire Leads	10.68 W
Delta Electronics THA0412AD-TZW3	Plastic	430 mA	70000 Hrs	7 V	15 V	Plastic	CE cURus TUV	12 VDC	40 mm	40 mm	345 Pa	1.385 in H2O	Tubeaxial	Ball	52 dB	25.85 g	0.057 lb	15600 RPM	70 °C	-25 °C	0.577 mł/min	20.6 CFM		Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 Wire Leads	5.16 W	20 mm	IP55 - Dust Protected Water Resistant

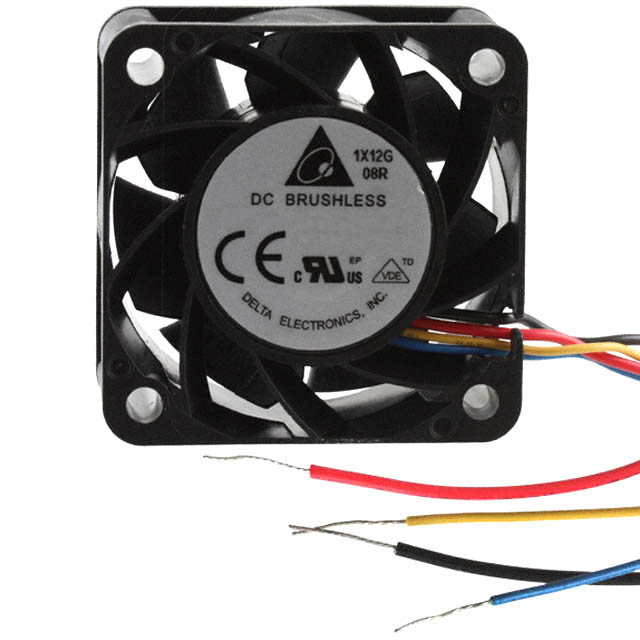

Delta Electronics THA0412AD	Plastic	430 mA	70000 Hrs	7 V	14 V	Plastic	CE cURus TUV	12 VDC	40 mm	40 mm	345 Pa	1.385 in H2O	Tubeaxial	Ball	52 dB	25.85 g	0.057 lb	15600 RPM	70 °C	-10 °C	0.577 mł/min	20.6 CFM		Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 Wire Leads	5.16 W	20 mm
