DML-16 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER R/A 16POS 3MM

Part	Contact Finish - Post	Termination	Insulation Material	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Contact Type	Number of Positions	Current Rating (Amps)	Shrouding	Features	Insulation Color	Style	Insulation Height	Insulation Height	Fastening Type	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Contact Shape	Pitch - Mating	Pitch - Mating	Voltage Rating	Material Flammability Rating	Contact Material	Insulation Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Insulation Height [z]	Contact Length - Post	Contact Length - Post

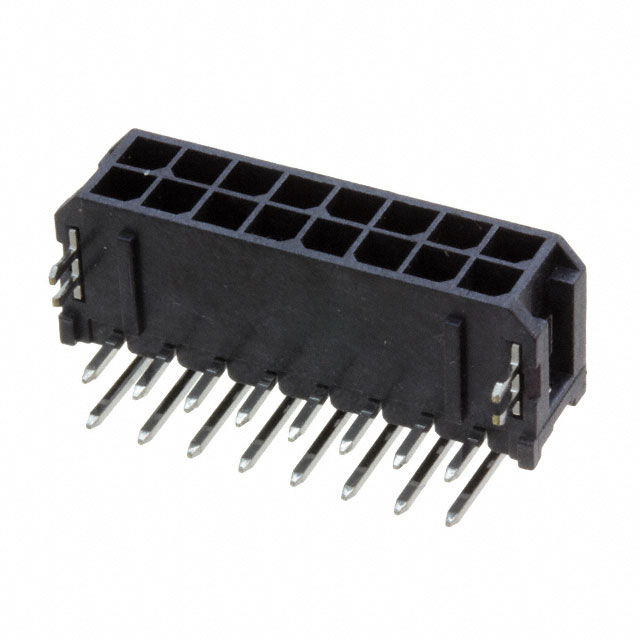

Adam Tech DML-16-A-H-T-A-SBL	Tin	Solder	Thermoplastic	2	0.118 in	3 mm	Right Angle Through Hole	Male Pin	16	Varies by Wire Gauge	Shrouded - 4 Wall	Board Lock	Black	Board to Cable/Wire	0.29 in	7.37 mm	Locking Ramp	All	0.126 "	3.2 mm	Header	Square	3 mm	0.118 in	250 V	UL94 V-0	Brass

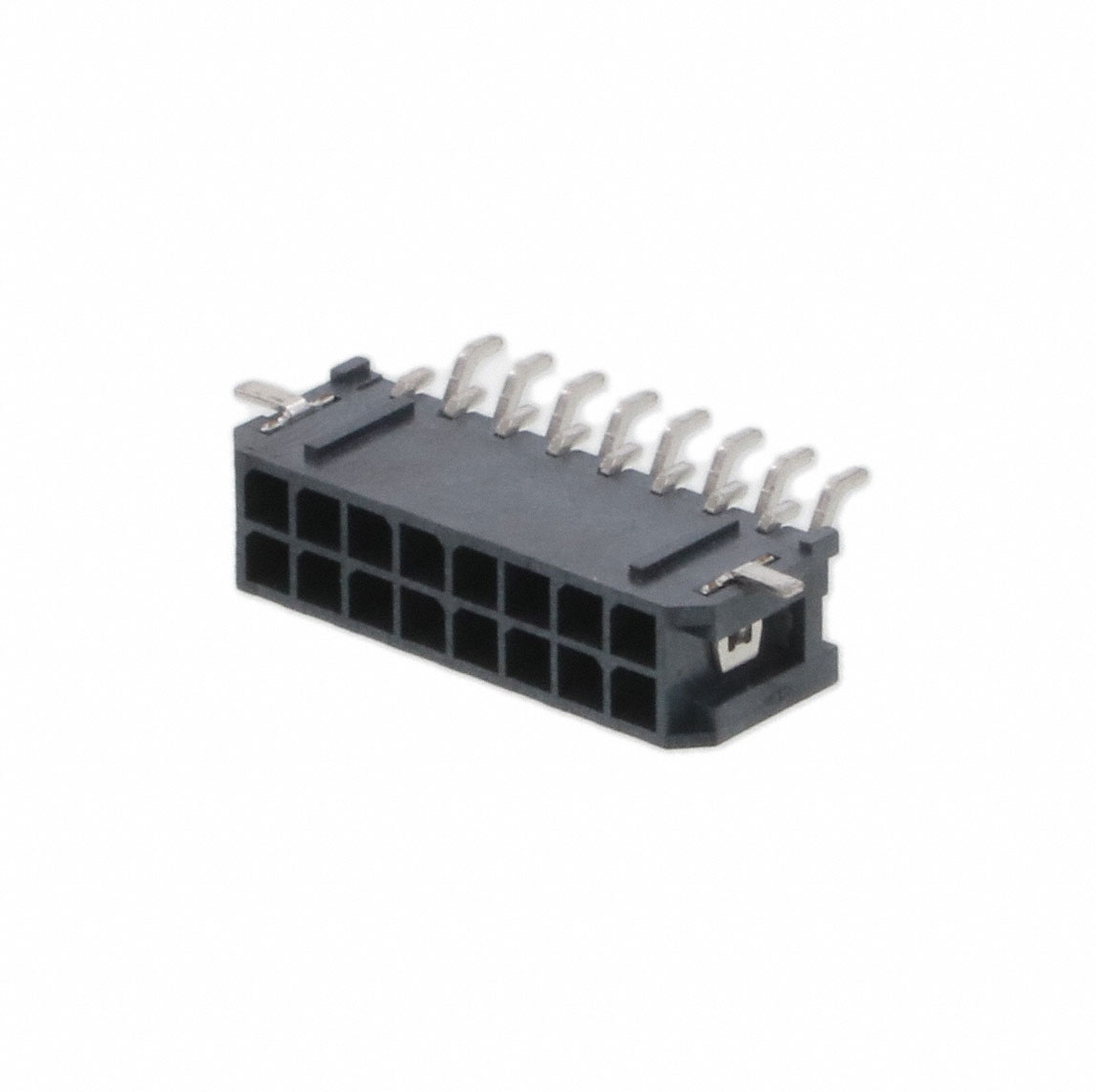

Adam Tech DML-16-A-H-T-A-TSMT-T/R	Tin	Solder	Thermoplastic	2	0.118 in	3 mm	Right Angle Surface Mount	Male Pin	16		Shrouded - 4 Wall	Solder Retention	Natural	Board to Cable/Wire		7.34 mm	Locking Ramp	All			Header	Square	3 mm	0.118 in	250 VAC	UL94 V-0	Brass	0.289 "	85 °C	-25 °C	5 A

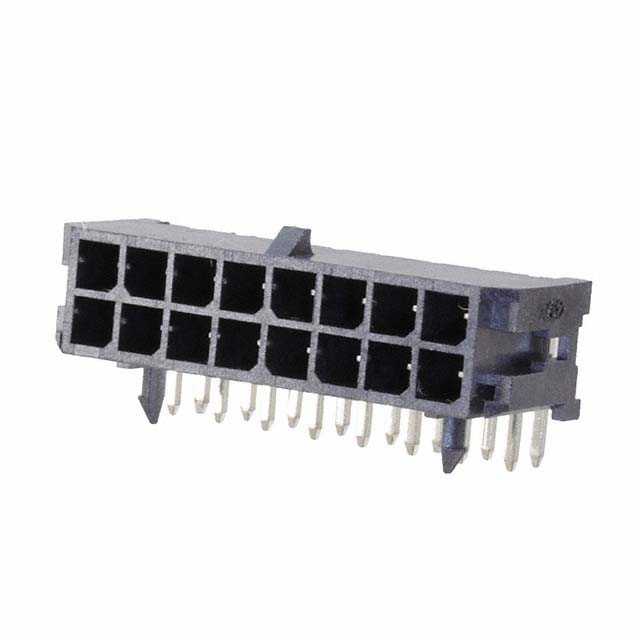

Adam Tech DML-16-A-H-T-A	Tin	Solder	Thermoplastic	2	0.118 in	3 mm	Right Angle Through Hole	Male Pin	16	Varies by Wire Gauge	Shrouded - 4 Wall	Board Lock	Black	Board to Cable/Wire			Locking Ramp	All			Header	Square	3 mm	0.118 in	250 V	UL94 V-0	Brass	0.27 in				6.86 mm	0.125 in	3.18 mm

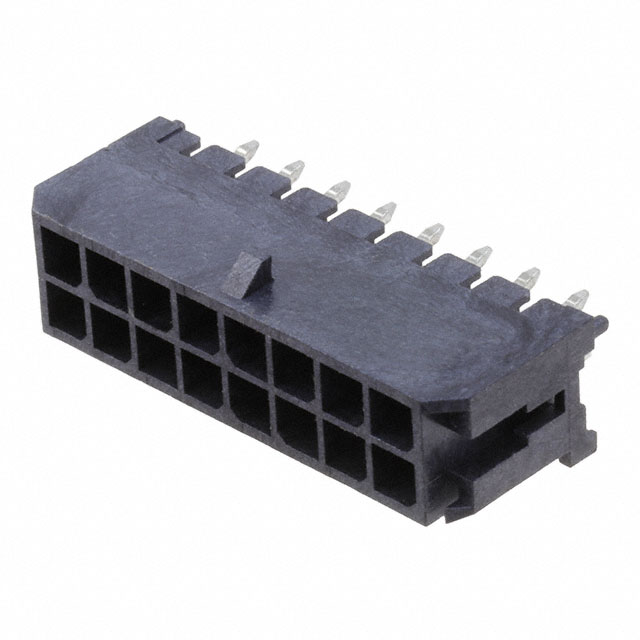

Adam Tech DML-16-A-V-T-A	Tin	Kinked Pin Solder	Thermoplastic	2	0.118 in	3 mm	Through Hole	Male Pin	16	Varies by Wire Gauge	Shrouded - 4 Wall	Board Guide	Black	Board to Cable/Wire			Locking Ramp	All			Header	Square	3 mm	0.118 in	250 V	UL94 V-0	Brass	0.39 in	125 °C	-45 °C		9.91 mm	0.125 in	3.18 mm
Adam Tech DML-16-A-V-T-SMT-BL-PP-T/R	Tin	Solder	Thermoplastic	2	0.118 in	3 mm	Surface Mount	Male Pin	16		Shrouded - 4 Wall	Board Lock	Black	Board to Cable/Wire			Locking Ramp	All			Header	Square	3 mm	0.118 in	250 VAC	UL94 V-0	Brass	0.39 in	85 °C	-25 °C	5 A	9.91 mm
Adam Tech DML-16-A-V-T-TSMT-T/R	Tin	Solder	Thermoplastic	2	0.118 in	3 mm	Surface Mount	Male Pin	16		Shrouded - 4 Wall	Solder Retention	Black	Board to Cable/Wire			Locking Ramp	All			Header	Square	3 mm	0.118 in	250 VAC	UL94 V-0	Brass	0.39 in	105 ░C	-25 °C	5 A	9.91 mm
