VI10 Series

Catalog

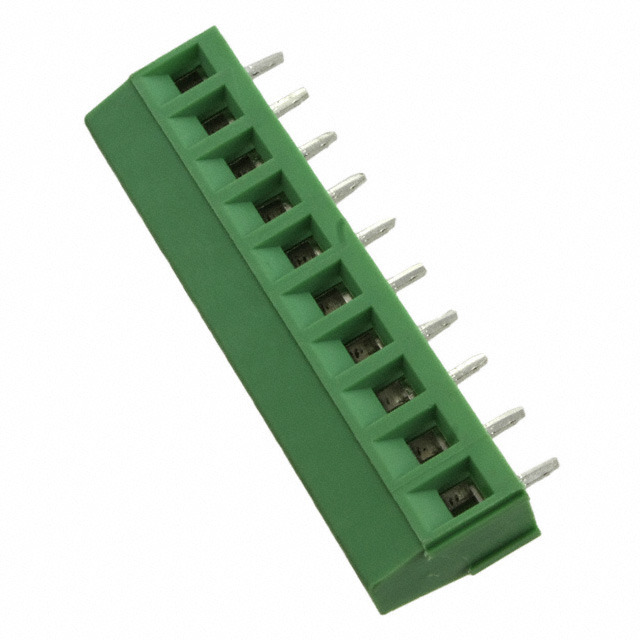

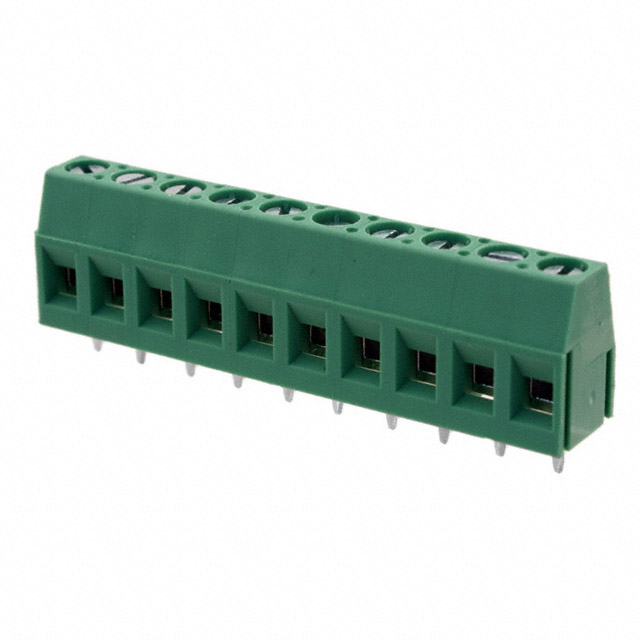

TERM BLK 10P SIDE ENTRY 5MM PCB

Part	Color	Wire Termination	Current	Screw Thread	Mating Orientation	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Features	Voltage	Screw Material - Plating	Housing Material	Torque - Screw	Torque - Screw	Clamp Material - Plating	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material - Plating	Mounting Type
Amphenol Anytek VI1001550000G	Green	Screw - Rising Cage Clamp	16 A	M3	Horizontal with Board	10	-40 °C	115 °C	1	Interlocking (Side)	300 V	Steel Zinc Plated	Thermoplastic	0.4 Nm	3.5 Lb-In	Copper Alloy - Nickel Plated	5 mm	0.197 in	12 AWG	28 AWG	Copper Alloy - Tin Plated	Through Hole
Amphenol Anytek VI1021500000G	Green	Screw - Rising Cage Clamp	16 A	M3	Vertical with Board	10	-40 °C	115 °C	1	Interlocking (Side)	300 V	Steel Zinc Plated	Thermoplastic	0.4 Nm	3.5 Lb-In	Brass - Nickel Plated	5.08 mm	0.2 in	12 AWG	28 AWG		Through Hole
Amphenol Anytek VI1021550000G	Green	Screw - Rising Cage Clamp	16 A	M3	Horizontal with Board	10	-40 °C	115 °C	1	Interlocking (Side)	300 V	Steel Zinc Plated	Thermoplastic	0.4 Nm	3.5 Lb-In	Copper Alloy - Nickel Plated	5.08 mm	0.2 in	12 AWG	28 AWG	Copper Alloy - Tin Plated	Through Hole
Amphenol Anytek VI1041500000G	Green	Screw - Rising Cage Clamp	16 A	M3	Vertical with Board	10	-40 °C	115 °C	1	Interlocking (Side)	300 V	Steel Zinc Plated	Thermoplastic	0.4 Nm	3.5 Lb-In	Brass - Nickel Plated	7.5 mm	0.295 in	12 AWG	28 AWG		Through Hole
