SIZ728 Series

Catalog

MOSFET 2N-CH 25V 16A 6PWRPAIR

Part	Drain to Source Voltage (Vdss)	Configuration	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max [Min]	Power - Max [Max]	FET Feature	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Package / Case	Technology

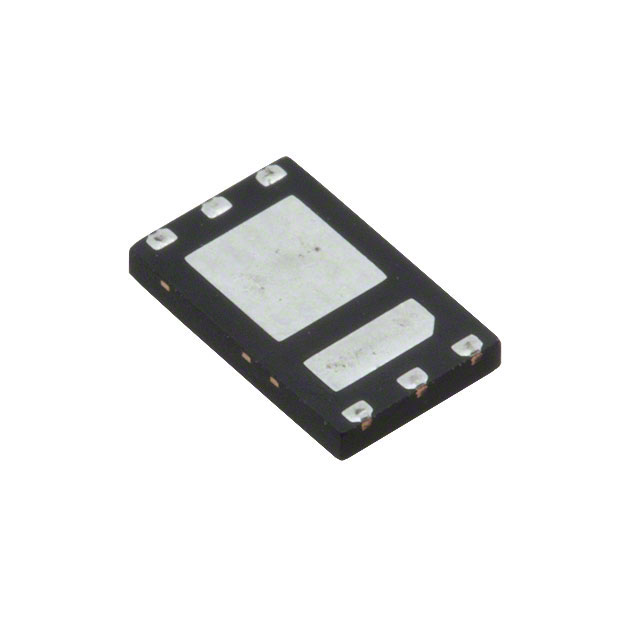

Vishay General Semiconductor - Diodes Division SIZ728DT-T1-GE3	25 V	2 N-Channel (Half Bridge)	7.7 mOhm	2.2 V	-55 °C	150 °C	27 W	48 W	Logic Level Gate	6-PowerPair™	26 nC	890 pF	Surface Mount	6-PowerPair™	MOSFET (Metal Oxide)
