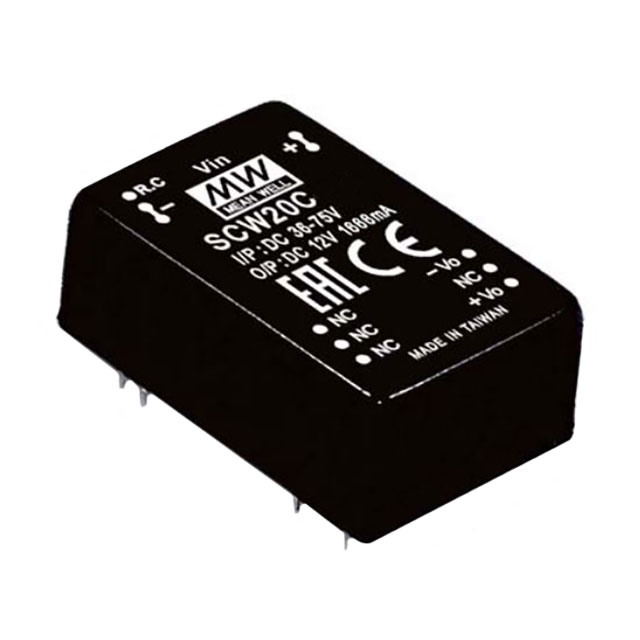

SCW20C Series

Catalog

DC/DC CONVERTER

Part	Approval Agency	Package / Case	Mounting Type	Applications	Voltage - Output 1	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Type	Current - Output (Max) [Max]	Features	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
MEAN WELL USA Inc. SCW20C-15	CE EAC UKCA	24-DIP Module 9 Leads	Through Hole	ITE (Commercial)	15 V	1.5 kV	80 ¯C	-40 °C	89 %	Isolated Module	1.333 A	Remote On/Off	1	36 V	75 V	20 W	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
MEAN WELL USA Inc. SCW20C-05	CE EAC UKCA	24-DIP Module 9 Leads	Through Hole	ITE (Commercial)	5 V	1.5 kV	80 ¯C	-40 °C	86 %	Isolated Module	4 A	Remote On/Off	1	36 V	75 V	20 W	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
MEAN WELL USA Inc. SCW20C-12	CE EAC UKCA	24-DIP Module 9 Leads	Through Hole	ITE (Commercial)	12 V	1.5 kV	80 ¯C	-40 °C	87 %	Isolated Module	1.666 A	Remote On/Off	1	36 V	75 V	20 W	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
