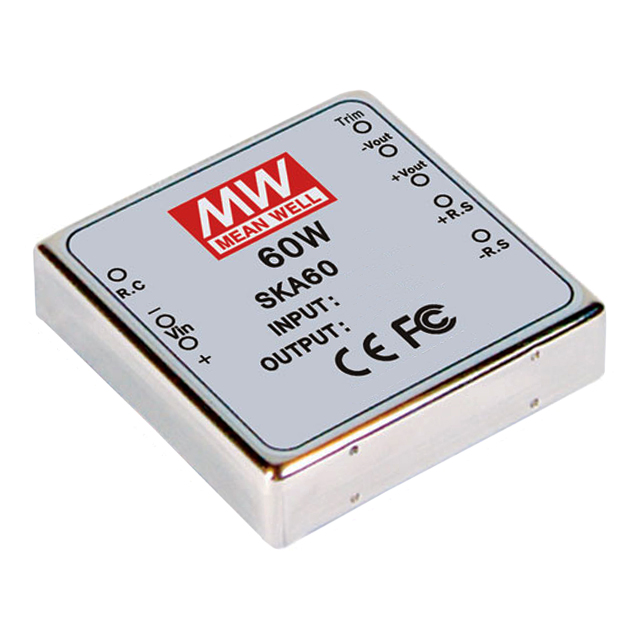

SKA60 Series

Catalog

DC DC CONVERTER 12V 60W

Part	Package / Case	Applications	Power (Watts)	Efficiency	Current - Output (Max)	Voltage - Input (Max) [Max]	Voltage - Isolation	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Voltage - Input (Min) [Min]	Voltage - Output 1	Features	Mounting Type	Current - Output (Max) [Max]
MEAN WELL USA Inc. SKA60A-12	8-DIP Module	ITE (Commercial)	60 W	92 %	5 A	18 V	1.5 kV	1	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	Isolated Module	9 V	12 V	OCP OVP Remote On/Off SCP	Through Hole
MEAN WELL USA Inc. SKA60C-05	8-DIP Module	ITE (Commercial)	60 W	92 %		75 V	1.5 kV	1	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	Isolated Module	36 V	5 V	OCP OVP Remote On/Off SCP	Through Hole	12 A
MEAN WELL USA Inc. SKA60B-05	8-DIP Module	ITE (Commercial)	60 W	90.5 %		36 V	1.5 kV	1	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	Isolated Module	18 V	5 V	OCP OVP Remote On/Off SCP	Through Hole	12 A
MEAN WELL USA Inc. SKA60C-15	8-DIP Module	ITE (Commercial)	60 W	92.5 %		75 V	1.5 kV	1	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	Isolated Module	36 V	15 V	OCP OVP Remote On/Off SCP	Through Hole	4 A
