M4672 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

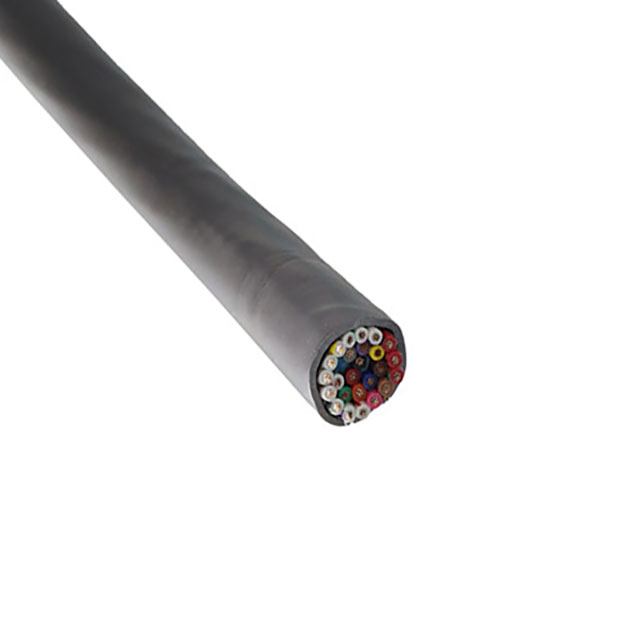

CABLE 25COND 20AWG SHLD
| Part | Shield Material | Shield Coverage | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Jacket Color | Jacket (Insulation) Material | Length [x] | Length [x] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Voltage | Cable Type | Shield Type | Conductor Insulation | Number of Conductors [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | UL Style 2464 | 28 AWG | 7 | 0.491 " | 12.47 mm | Drain Wire Rip Cord | Slate | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | 20 AWG | 0.813 mm | 0.032 in | Copper Tinned | 300 VDC | Multi-Conductor | Foil | Poly-Vinyl Chloride (PVC) | 25 | 80 °C | -20 ░C | ||
 ALPHA WIRE | Aluminum | 100 % | UL Style 2464 | 28 AWG | 7 | 0.491 " | 12.47 mm | Drain Wire Rip Cord | Slate | Poly-Vinyl Chloride (PVC) | 20 AWG | 0.813 mm | 0.032 in | Copper Tinned | 300 VDC | Multi-Conductor | Foil | Poly-Vinyl Chloride (PVC) | 25 | 80 °C | -20 ░C | 914.4 m | 3000 ' |
