HLMP-3301 Series

Catalog

LED RED DIFFUSED T-1 3/4 T/H

Part	Lens Color	Wavelength - Peak	Lens Style	Current - Test	Lens Transparency	Color	Package / Case	Configuration	Wavelength - Dominant	Viewing Angle	Mounting Type	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Millicandela Rating	Height (Max) [Max]	Lens Size	Lens Size

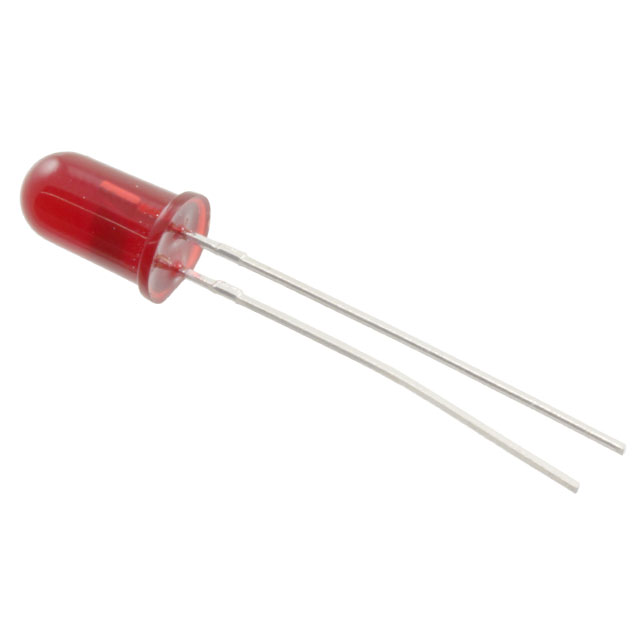

Broadcom Limited HLMP-3301-F00DD	Red	635 nm	Round with Domed Top	10 mA	Diffused	Red	Radial	Standard	626 nm	60 °	Through Hole	1.9 V	T-1 3/4	5.4 mcd	9.19 mm	5 mm	T-1 3/4
Broadcom Limited HLMP-3301	Red	635 nm	Round with Domed Top	10 mA	Diffused	Red	Radial	Standard	626 nm	60 °	Through Hole	1.9 V	T-1 3/4	5.4 mcd	9.19 mm	5 mm	T-1 3/4
Broadcom Limited HLMP-3301-F00R4	Red	635 nm	Round with Domed Top	10 mA	Diffused	Red	Radial	Standard	626 nm	60 °	Through Hole	1.9 V	T-1 3/4	5.4 mcd	9.19 mm	5 mm	T-1 3/4

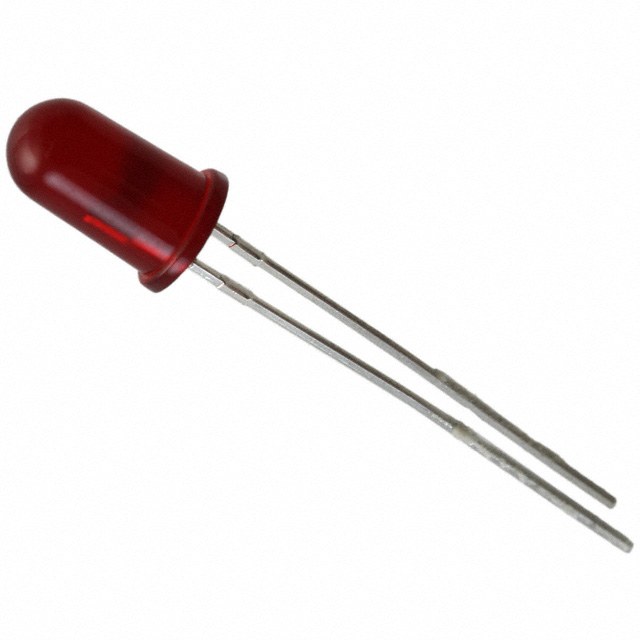

Broadcom Limited HLMP-3301-F0002	Red	635 nm	Round with Domed Top	10 mA	Diffused	Red	Radial	Standard	626 nm	60 °	Through Hole	1.9 V	T-1 3/4	5.4 mcd	9.19 mm	5 mm	T-1 3/4
Broadcom Limited HLMP-3301-F0001	Red	635 nm	Round with Domed Top	10 mA	Diffused	Red	Radial	Standard	626 nm	60 °	Through Hole	1.9 V	T-1 3/4	5.4 mcd	9.19 mm	5 mm	T-1 3/4
