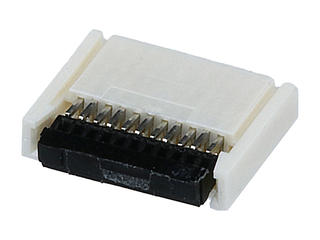

0.30mm Pitch Easy-On Back Flip FPC Connector, Right-Angle, Surface Mount, Dual Contact Style, 0.95mm Height, 11 Circuits
0.30mm Pitch Easy-On Back Flip FPC Connector, Right-Angle, Surface Mount, Dual Contact Style, 0.95mm Height, 11 Circuits
0.30mm Pitch Easy-On Back Flip FPC Connector, Right-Angle, Surface Mount, Dual Contact Style, 0.95mm Height, 11 Circuits
| Part | Actuator Color | FFC, FCB Thickness | Current Rating (Amps) | Pitch [x] | Pitch [x] | Mounting Type | Height Above Board | Height Above Board | Connector/Contact Type | Cable End Type | Contact Material | Housing Color | Actuator Material | Housing Material | Termination | Material Flammability Rating | Voltage Rating | Number of Positions | Contact Finish | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Flat Flex Type | Locking Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

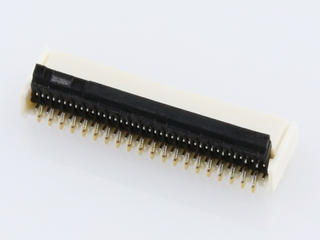

 Molex | Black | 0.2 mm | 300 mA | 0.012 in | 0.3 mm | Surface Mount Right Angle | 0.037 in | 0.95 mm | Contacts Top and Bottom | Tapered | Phosphor Bronze | White | Glass Filled Nylon Polyamide (PA) | Liquid Crystal Polymer (LCP) Glass Filled | Solder | UL94 V-0 | 50 V | 41 | Gold | 10 | 85 °C | -40 °C | FPC | Backlock Flip Lock |

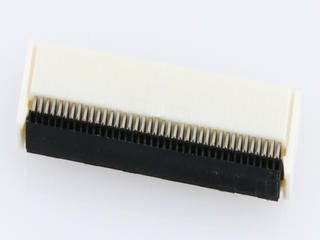

 Molex | Black | 0.2 mm | 300 mA | 0.012 in | 0.3 mm | Surface Mount Right Angle | 0.037 in | 0.95 mm | Contacts Top and Bottom | Tapered | Phosphor Bronze | White | Glass Filled Nylon Polyamide (PA) | Liquid Crystal Polymer (LCP) Glass Filled | Solder | UL94 V-0 | 50 V | 39 | Gold | 10 | 85 °C | -40 °C | FPC | Backlock Flip Lock |
 Molex | Black | 0.2 mm | 300 mA | 0.012 in | 0.3 mm | Surface Mount Right Angle | 0.037 in | 0.95 mm | Contacts Top and Bottom | Tapered | Phosphor Bronze | White | Glass Filled Nylon Polyamide (PA) | Liquid Crystal Polymer (LCP) Glass Filled | Solder | UL94 V-0 | 50 V | 19 | Gold | 10 | 85 °C | -40 °C | FPC | Backlock Flip Lock |
