4770 Series

Catalog

CONN BIND POST SPRING-LOAD BLACK

Part	Head Size	Head Size	Material - Insulation	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Voltage Rating	Nut Material	Termination	Plating - Body	Head Style	Type	Color	Current Rating (Amps)	Material - Body

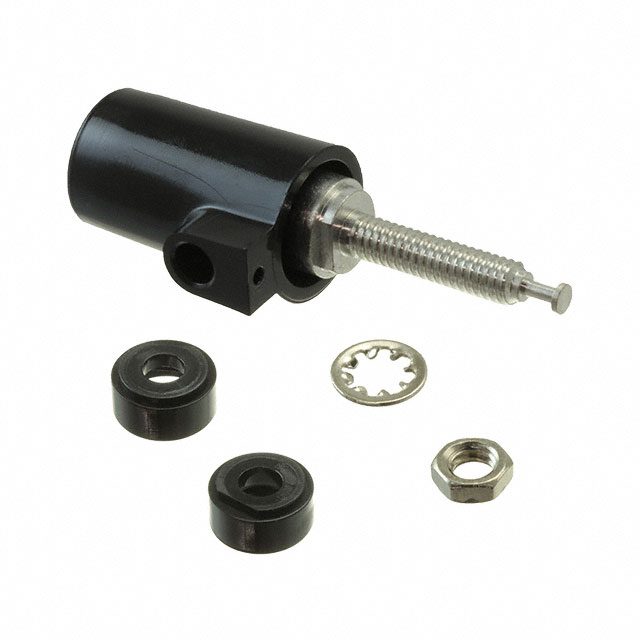

Pomona Electronics 4770-0	13.46 mm	0.53 in	Polycarbonate (PC)	0.375 in	9.53 mm	0.063 in	1.6 mm	30 VAC 60 VDC	Brass	Threaded and Turret	Tin	Smooth Spring Loaded	Standard	Black	15 A	Brass

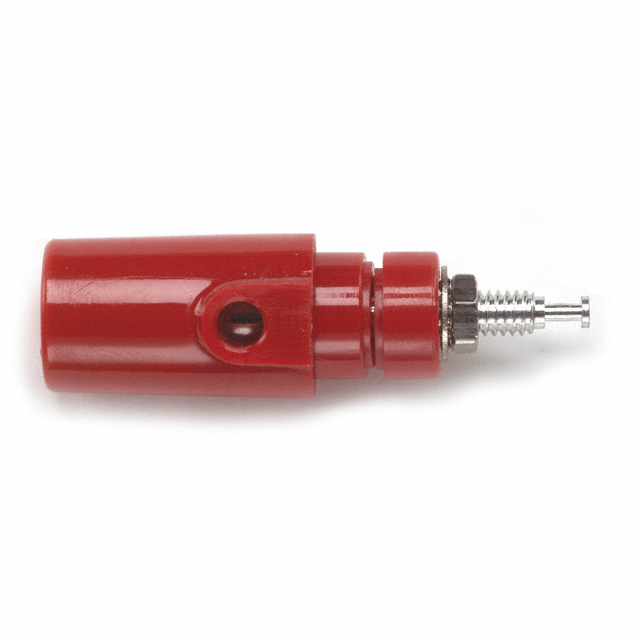

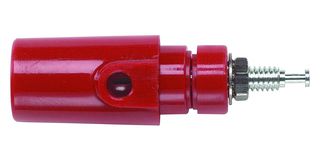

Pomona Electronics 4770-2	13.46 mm	0.53 in	Polycarbonate (PC)	0.375 in	9.53 mm	0.063 in	1.6 mm	30 VAC 60 VDC	Brass	Threaded and Turret	Tin	Smooth Spring Loaded	Standard	Red	15 A	Brass
