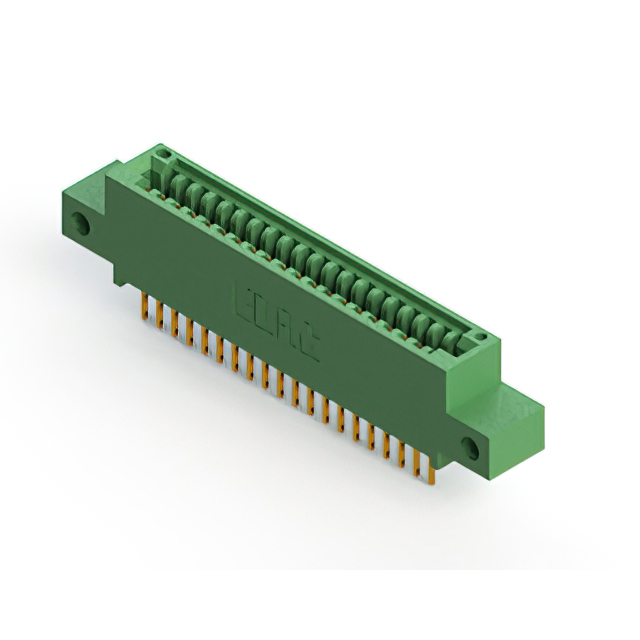

845-020 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 20POS 0.100
| Part | Material - Insulation | Termination Rows | Color | Number of Positions | Read Out | Flange Feature | Gender | Contact Type | Contact Material | Contact Finish | Card Type | Number of Positions/Bay/Row | Mounting Type | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Pitch | Pitch | Termination Rows [custom] | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | 20 | Single | 4-40 Threaded Insert Top Mount Opening | Female | Cantilever | Copper Alloy | Gold | Non Specified - Single Edge | 20 Bay/Row | Through Hole | 1 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Wire Wrap | 0.1 " | 2.54 mm | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | 20 | Dual | Side Mount Opening Unthreaded | Female | Cantilever | Copper Alloy | Gold | Non Specified - Dual Edge | 10 | Through Hole | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Wire Wrap | 0.1 " | 2.54 mm | 2 | 2 | 0.128 " | 3.25 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | 20 | Single | 4-40 Threaded Insert Top Mount Opening | Female | Cantilever | Copper Alloy | Gold | Non Specified - Single Edge | 20 Bay/Row | Through Hole | 1 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Wire Wrap | 0.1 " | 2.54 mm | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | 20 | Dual | Flush Mount Top Opening Unthreaded | Female | Cantilever | Copper Alloy | Gold | Non Specified - Dual Edge | 10 | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder | 0.1 " | 2.54 mm | 2 | 2 | 0.156 " | 3.96 mm | Card Extender | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | 20 | Dual | 4-40 Threaded Insert Top Mount Opening | Female | Cantilever | Copper Alloy | Gold | Non Specified - Dual Edge | 10 | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder | 0.1 " | 2.54 mm | 2 | 2 | Card Extender | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | 20 | Single | Side Mount Opening Unthreaded | Female | Cantilever | Copper Alloy | Gold | Non Specified - Single Edge | 20 Bay/Row | Right Angle Through Hole | 1 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder | 0.1 " | 2.54 mm | 0.128 " | 3.25 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | 20 | Single | Female | Cantilever | Copper Alloy | Gold | Non Specified - Single Edge | 20 Bay/Row | Through Hole | 1 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Wire Wrap | 0.1 " | 2.54 mm | 0.128 " | 3.25 mm | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | 20 | Dual | Floating Bobbin Flush Mount | Female | Cantilever | Copper Alloy | Gold | Non Specified - Dual Edge | 10 | Right Angle Through Hole | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder | 0.1 " | 2.54 mm | 2 | 2 | 0.116 " | 2.95 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | 20 | Single | Floating Bobbin Top Mount Opening | Female | Cantilever | Copper Alloy | Gold | Non Specified - Single Edge | 20 Bay/Row | Through Hole | 1 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Wire Wrap | 0.1 " | 2.54 mm | 0.116 " | 2.95 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | 20 | Single | Side Mount Opening Unthreaded | Female | Cantilever | Copper Alloy | Gold | Non Specified - Single Edge | 20 Bay/Row | Through Hole | 1 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder | 0.1 " | 2.54 mm | 0.128 " | 3.25 mm |
