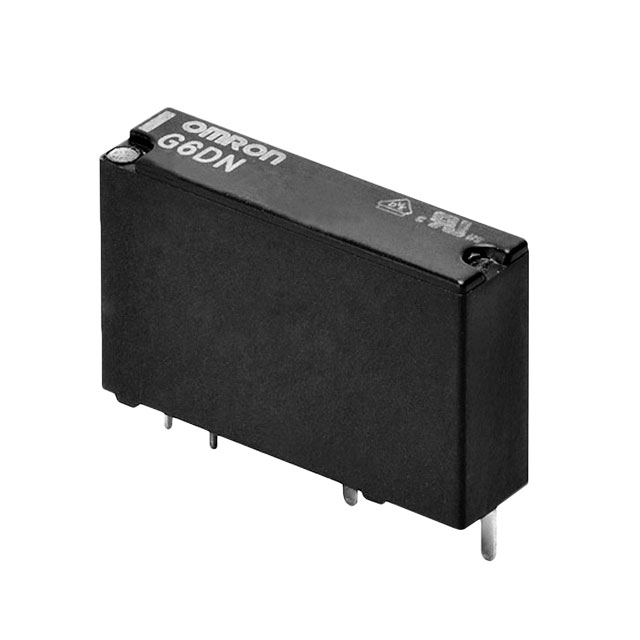

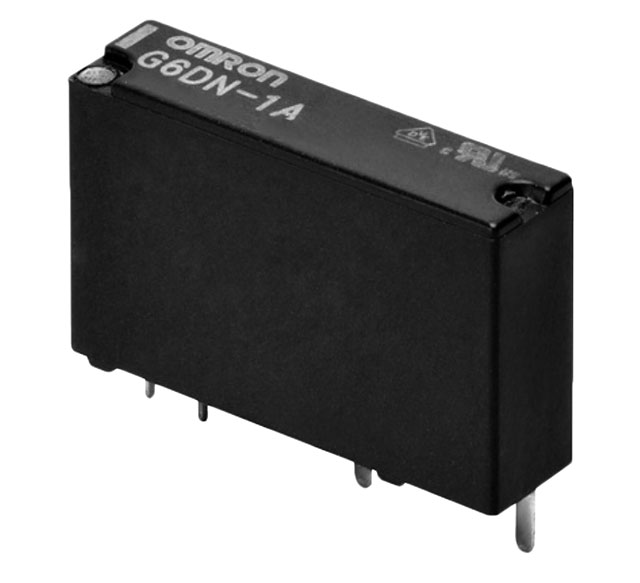

G6DN-1A Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY GEN PURPOSE SPST 5A 4.5V

Part	Coil Voltage	Coil Resistance	Coil Insulation	Must Operate Voltage	Operate Time	Release Time	Contact Form	Mounting Type	Relay Type	Seal Rating	Approval Agency	Coil Type	Coil Current	Switching Voltage	Contact Rating (Current)	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Termination Style	Load - Max Switching
Omron Electronics Inc-EMC Div G6DN-1A DC4.5	4.5 VDC	184 Ohms	Class B	3.15 VDC	10 ms	5 ms	SPST-NO (1 Form A)	Through Hole	General Purpose	Sealed - Fully	cURus TUV VDE	Non Latching	24.4 mA	125 VDC 277 VAC	5 A	Silver Alloy	90 °C	-40 °C	0.225 VDC	PC Pin	625 W 1385 VA
Omron Electronics Inc-EMC Div G6DN-1A DC5	5 VDC	227 Ohms	Class B	3.5 VDC	10 ms	5 ms	SPST-NO (1 Form A)	Through Hole	General Purpose	Sealed - Fully	cURus TUV VDE	Non Latching	22 mA	125 VDC 277 VAC	5 A	Silver Alloy	90 °C	-40 °C	0.25 VDC	PC Pin	625 W 1385 VA
Omron Electronics Inc-EMC Div G6DN-1A-L DC12	12 VDC	800 Ohms	Class B	8.4 VDC	10 ms	5 ms	SPST-NO (1 Form A)	Through Hole	General Purpose	Sealed - Fully	cURus TUV VDE	Non Latching	15 mA	125 VDC 277 VAC	5 A	Silver Alloy	90 °C	-40 °C	0.6 VDC	PC Pin	625 W 1385 VA
Omron Electronics Inc-EMC Div G6DN-1A-SL DC24	24 VDC	5.2 kOhms	Class B	16.8 VDC	10 ms	5 ms	SPST-NO (1 Form A)	Through Hole	General Purpose	Sealed - Fully	cURus TUV VDE	Non Latching	4.6 mA	125 VDC 277 VAC	5 A	Silver Alloy	90 °C	-40 °C	1.2 VDC	PC Pin	625 W 1385 VA
Omron Electronics Inc-EMC Div G6DN-1A-ASI DC24
Omron Electronics Inc-EMC Div G6DN-1A ASI DC12
Omron Electronics Inc-EMC Div G6DN-1A-L DC24	24 VDC	3.2 kOhms	Class B	16.8 VDC	10 ms	5 ms	SPST-NO (1 Form A)	Through Hole	General Purpose	Sealed - Fully	cURus TUV VDE	Non Latching	7.5 mA	125 VDC 277 VAC	5 A	Silver Alloy	90 °C	-40 °C	1.2 VDC	PC Pin	625 W 1385 VA
