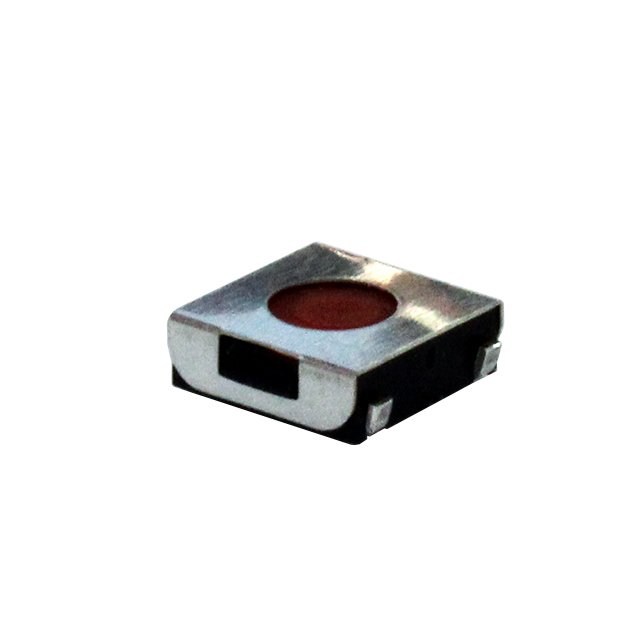

CS1110J Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Switch Travel | Actuator Material | Circuit | Actuator Height off PCB, Vertical [z] | Switch Function | Operating Force | Illumination | Termination Style | Contact Rating @ Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Actuator Orientation | Outline [x] | Outline [y] | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.25 mm | Polyamide (PA46) Nylon 4/6 | SPST-NO | 3.1 mm | Off-Mom | 160 gf | Non-Illuminated | J Lead | 0.05 A 50 VDC | 85 °C | -40 C | Surface Mount | Top Actuated | 6.2 mm | 6.2 mm | Standard |
