ARGB1313 Series
Manufacturer: Stanley Electric Co
Beta
⌘K

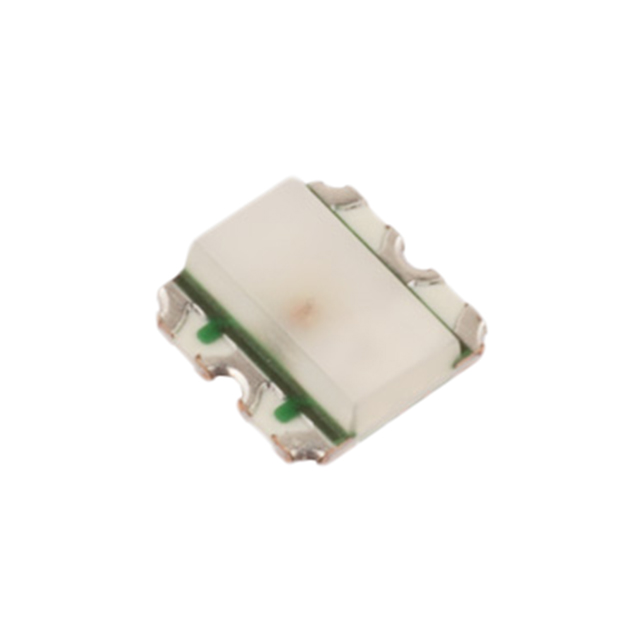

LED RGB DIFFUSED SMD
| Part | Package / Case | Color | Millicandela Rating Colors | Millicandela Rating (Blue) | Millicandela Rating (Red) | Millicandela Rating (Green) | Size / Dimension Width | Size / Dimension Length | Lens Color | Lens Style | Mounting Type | Current - Test Colors | Current - Test (Red) | Current - Test (Green) | Current - Test (Blue) | Voltage - Forward (Vf) (Typ) Color | Voltage - Forward (Vf) (Typ) (Green) | Voltage - Forward (Vf) (Typ) (Red) | Voltage - Forward (Vf) (Typ) (Blue) | Lens Transparency | Wavelength - Dominant Color | Wavelength - Dominant (Green) | Wavelength - Dominant (Red) | Wavelength - Dominant (Blue) | Configuration | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Stanley Electric Co | 6-SMD No Lead | Blue (RGB) Green Red | Blue Green Red | 180 mcd | 450 mcd | 850 mcd | 2.04 mm | 2.04 mm | White | Flat Top Rectangle | Surface Mount | Blue Green Red | 26 mA | 22 mA | 12 mA | Blue Green Red | 3.2 V | 2.1 V | 3.1 V | Diffused | Blue Green Red | 527 nm | 622 nm | 473 nm | Independent | 0.6 mm |
