ESD1L001 Series

Low Capacitance ESD Protection Diodes for High Speed Data Line

Catalog

Low Capacitance ESD Protection Diodes for High Speed Data Line

Part	Voltage - Clamping (Max) @ Ipp	Package / Case	Applications	Mounting Type	Power Line Protection	Capacitance @ Frequency	Supplier Device Package	Voltage - Reverse Standoff (Typ)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Unidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Qualification	Grade

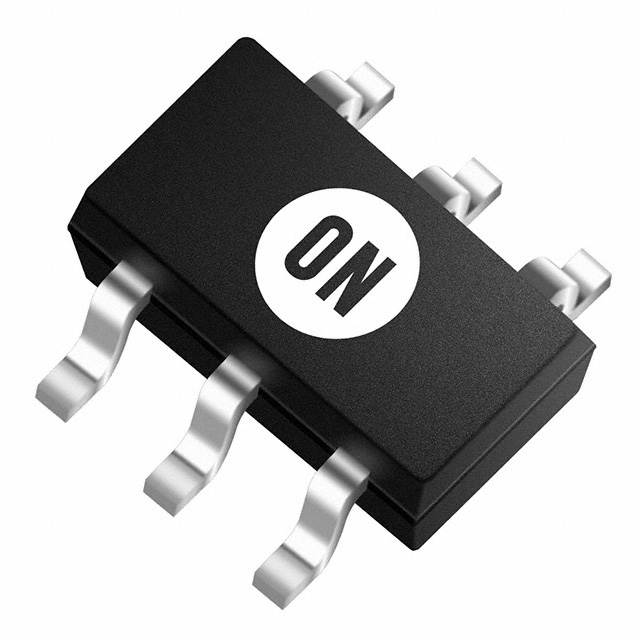

ON Semiconductor ESD1L001W1T2G	30 V	6-TSSOP SC-88 SOT-363	HDMI USB	Surface Mount		0.3 pF	SC-70-6	5 V	Zener	125 ¯C	-55 °C	4	16.5 V
ON Semiconductor SZESD1L001W1T2G	30 V	6-TSSOP SC-88 SOT-363	HDMI USB	Surface Mount		0.3 pF	SC-88 SC70-6 SOT-363	5 V	Zener	125 ¯C	-55 °C	4	16.5 V	AEC-Q101	Automotive

Catalog

Low Capacitance ESD Protection Diodes for High Speed Data Line

Key Features

• Low Capacitance (0.3 pF Typical, I/O to GND)

• Low ESD Clamping Voltage (30 V Typical, +16 A TLP, I/O to GND)

• Level 4 IEC 61000-4-2 Protection

• SZ Prefix for Automotive and Other Applications Requiring UniqueSite and Control Change Requirements; AEC−Q101 Qualified andPPAP Capable

• Short to Battery Survivability

• These Devices are Pb−Free and are RoHS Compliant

Description

The ESD1L001 surge protection is designed to protect four high speed data lines from ESD. Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The small form factor, flow−through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high speed differential lines such as USB 3.0 and HDMI.
