IGBT Module - Others V1A/B PACK
Description
AI
The Converter + Brake + Inverter series utilizes rugged input rectifier diodes and short circuit rated XPT igbts in combination with fast switching SONIC free wheeling diodes.
Beta
⌘K
IGBT Module - Others V1A/B PACK
IGBT Module - Others V1A/B PACK
| Part | Supplier Device Package | Current - Collector (Ic) (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Power - Max [Max] | Input | Vce(on) (Max) @ Vge, Ic | Mounting Type | Voltage - Collector Emitter Breakdown (Max) [Max] | Current - Collector Cutoff (Max) [Max] | NTC Thermistor | Package / Case | Configuration | IGBT Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

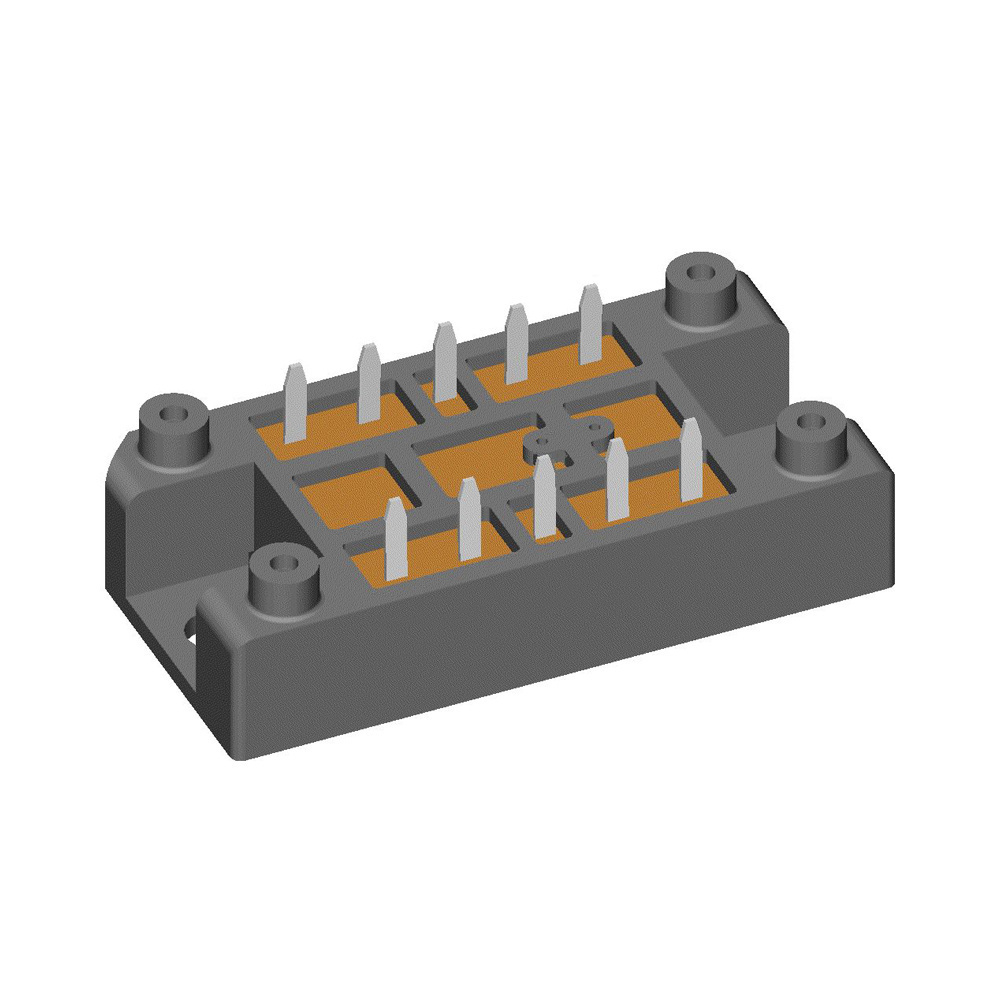

 LITTELFUSE | V1A-PAK | 85 A | -40 °C | 150 °C | 290 W | Standard | 2.1 V | Chassis Mount | 1200 V | 500 çA | V1A-PAK | 2 Independent | PT | |

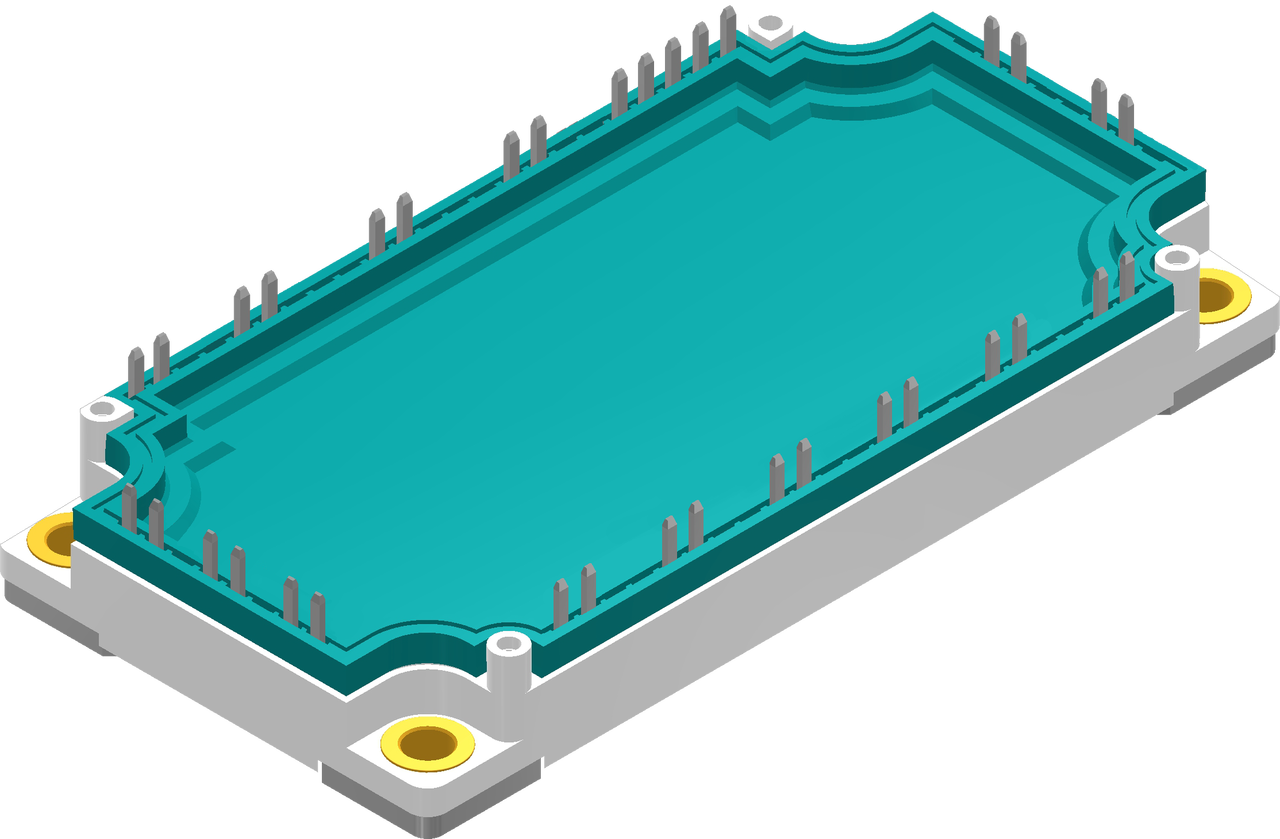

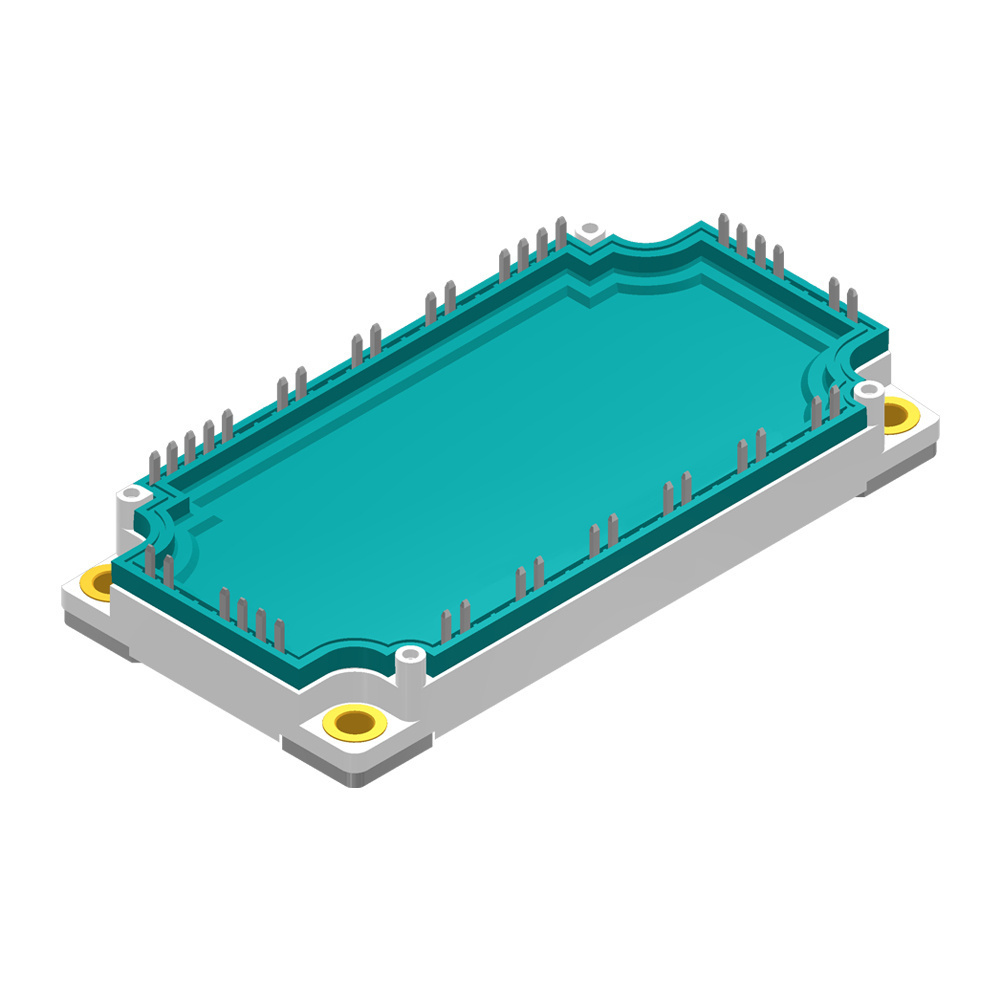

 LITTELFUSE | E3 | 85 A | 290 W | Three Phase Bridge Rectifier | 2.1 V | Chassis Mount | 1200 V | 500 çA | E3 | Three Phase Inverter with Brake | ||||

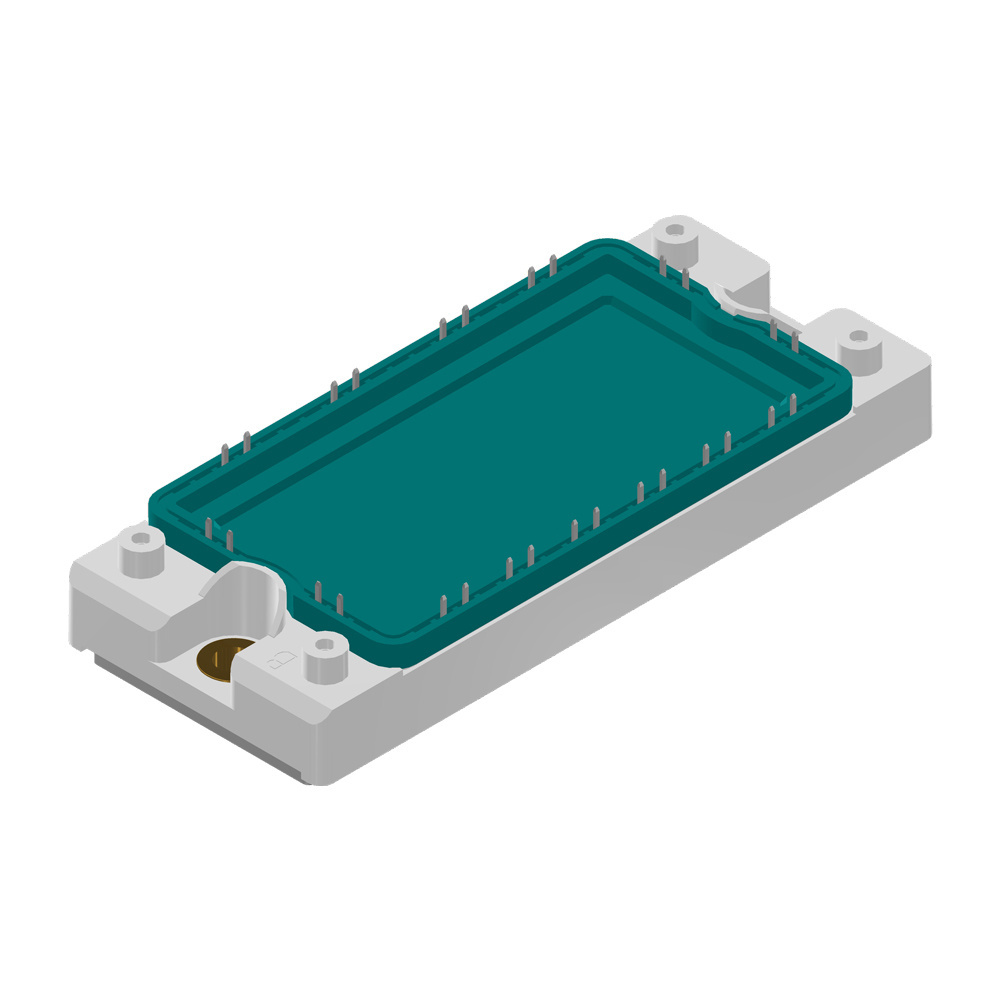

 LITTELFUSE | E2 | 85 A | -40 C | 125 °C | 290 W | Standard | 2.1 V | Chassis Mount | 1200 V | 500 çA | E2 | Three Phase Inverter with Brake | PT | |
 LITTELFUSE | E3 | 85 A | -40 C | 125 °C | 290 W | Three Phase Bridge Rectifier | 2.1 V | Chassis Mount | 1200 V | 500 çA | E3 | Three Phase Inverter with Brake | PT |
