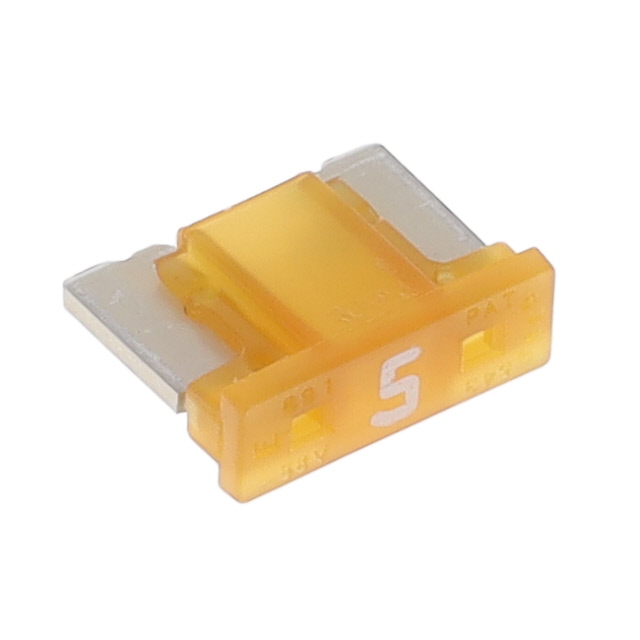

0891005.NXWS Series

Fuse - LP Mini 58VDC 10.9mm Blade Ag 5A

Catalog

Fuse - LP Mini 58VDC 10.9mm Blade Ag 5A

Part	Mounting Type	DC Cold Resistance	Fuse Type	Package / Case	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Breaking Capacity @ Rated Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Color	Current Rating (Amps)	Melting I²t
Littelfuse/Commercial Vehicle Products 0891005.NXWS	Requires Holder	17.21 Ohms	Automotive	Blade Miniature (Low Profile)	58 VDC	0.429 "	0.15 in	3.81 mm	8.73 mm	0.344 "	10.9 mm	1 kA	125 °C	-40 °C	Tan	5 A	22

Fuse - LP Mini 58VDC 10.9mm Blade Ag 5A

• Fast-acting

• Tan housing indicates 5 A rating

• Silver-plated zinc terminals

• Net weight 0.4 g ±15 %

• Complies with ISO 8820-9

• UL Recognized as a UL 248 Special Purpose Fuse

This 5 A Low Profile MINI® 10.9 mm fuse protects circuit protection as well as larger and heavier MINI 58V blade fuses.
