S150 Series

Catalog

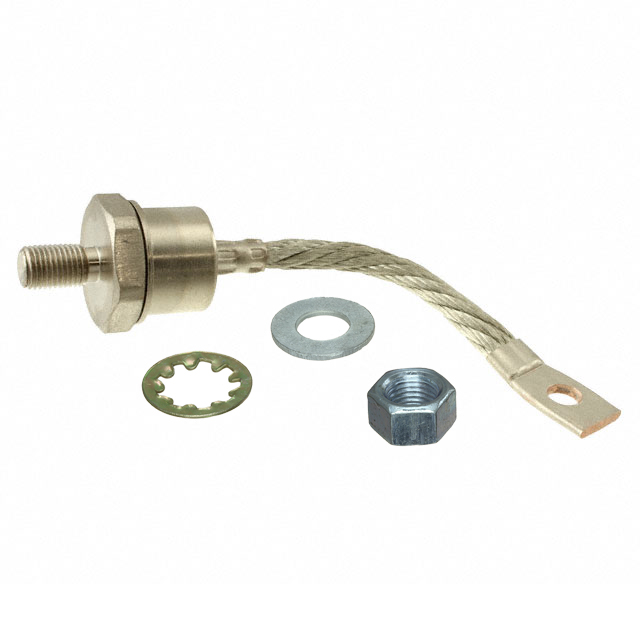

DIODE GP REV 1KV 150A DO205AA

Part	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Speed [Min]	Package / Case	Mounting Type	Technology	Current - Reverse Leakage @ Vr	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
GeneSiC Semiconductor S150MR	1.2 V	150 A	1000 V	200 mA 500 ns	DO-205AA DO-8 Stud	Chassis Stud Mount	Reverse Polarity Standard	10 µA	DO-205AA (DO-8)	200 C	-65 C
GeneSiC Semiconductor S150J	1.2 V	150 A	600 V	200 mA 500 ns	DO-205AA DO-8 Stud	Chassis Stud Mount	Standard	10 µA	DO-205AA (DO-8)	200 C	-65 C
GeneSiC Semiconductor S150M	1.2 V	150 A	1000 V	200 mA 500 ns	DO-205AA DO-8 Stud	Chassis Stud Mount	Standard	10 µA	DO-205AA (DO-8)	200 C	-65 C
GeneSiC Semiconductor S150JR	1.2 V	150 A	600 V	200 mA 500 ns	DO-205AA DO-8 Stud	Chassis Stud Mount	Reverse Polarity Standard	10 µA	DO-205AA (DO-8)	200 C	-65 C
GeneSiC Semiconductor S150QR	1.2 V	150 A	1.2 kV	200 mA 500 ns	DO-205AA DO-8 Stud	Chassis Stud Mount	Reverse Polarity Standard	10 µA	DO-205AA (DO-8)	200 C	-65 C
GeneSiC Semiconductor S150KR	1.2 V	150 A	800 V	200 mA 500 ns	DO-205AA DO-8 Stud	Chassis Stud Mount	Reverse Polarity Standard	10 µA	DO-205AA (DO-8)	200 C	-65 C
