103542 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 80POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Style	Connector Type	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Type	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Current Rating (Amps)	Number of Rows [custom]	Insulation Color	Contact Finish - Post	Shrouding	Contact Material	Number of Positions Loaded	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Finish - Mating	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Positions [custom]
TE Connectivity AMP Connectors 8-103542-9	2.54 µm	100 µin	0.66 in	16.76 mm	Board to Board Cable	Header	0.09 in	2.29 mm	0.32 in	8.13 mm	-55 C	125 °C	Press-Fit Solder	Male Pin	Thermoplastic	0.1 "	2.54 mm	80	0.76 Ám	30 Áin	Square	3 A	2	Black	Tin	Unshrouded	Copper Alloy	All	UL94 V-0	0.1 in	2.54 mm	Through Hole	Gold	Push-Pull	6.35 mm	0.25 in
TE Connectivity AMP Connectors 5-103542-7	2.54 µm	100 µin	0.66 in	16.76 mm	Board to Board Cable	Header	0.09 in	2.29 mm	0.32 in	8.13 mm	-55 C	125 °C	Press-Fit Solder	Male Pin	Thermoplastic	0.1 "	2.54 mm	16	0.76 Ám	30 Áin	Square	3 A	2	Black	Tin	Unshrouded	Copper Alloy	All	UL94 V-0	0.1 in	2.54 mm	Through Hole	Gold	Push-Pull	6.35 mm	0.25 in
TE Connectivity AMP Connectors 103542-3	2.54 µm	100 µin	0.66 in	16.76 mm	Board to Board Cable	Header	0.09 in	2.29 mm	0.32 in	8.13 mm	-55 C	125 °C	Press-Fit Solder	Male Pin	Thermoplastic	0.1 "	2.54 mm	8	0.76 Ám	30 Áin	Square	3 A	2	Black	Tin-Lead	Unshrouded	Copper Alloy	All	UL94 V-0	0.1 in	2.54 mm	Through Hole	Gold	Push-Pull	6.35 mm	0.25 in
TE Connectivity AMP Connectors 7-103542-9	2.54 µm	100 µin	0.66 in	16.76 mm	Board to Board Cable	Header	0.09 in	2.29 mm	0.32 in	8.13 mm	-55 C	125 °C	Press-Fit Solder	Male Pin	Thermoplastic	0.1 "	2.54 mm	60	0.76 Ám	30 Áin	Square	3 A	2	Black	Tin	Unshrouded	Copper Alloy	All	UL94 V-0	0.1 in	2.54 mm	Through Hole	Gold	Push-Pull	6.35 mm	0.25 in
TE Connectivity AMP Connectors 2-103542-9	2.54 µm	100 µin	0.66 in	16.76 mm	Board to Board Cable	Header	0.09 in	2.29 mm	0.32 in	8.13 mm	-55 C	125 °C	Press-Fit Solder	Male Pin	Thermoplastic	0.1 "	2.54 mm	60	0.76 Ám	30 Áin	Square	3 A	2	Black	Tin-Lead	Unshrouded	Copper Alloy	All	UL94 V-0	0.1 in	2.54 mm	Through Hole	Gold	Push-Pull	6.35 mm	0.25 in
TE Connectivity AMP Connectors 6-103542-2	2.54 µm	100 µin	0.66 in	16.76 mm	Board to Board Cable	Header	0.09 in	2.29 mm	0.32 in	8.13 mm	-55 C	125 °C	Press-Fit Solder	Male Pin	Thermoplastic	0.1 "	2.54 mm	26	0.76 Ám	30 Áin	Square	3 A	2	Black	Tin	Unshrouded	Copper Alloy	All	UL94 V-0	0.1 in	2.54 mm	Through Hole	Gold	Push-Pull	6.35 mm	0.25 in

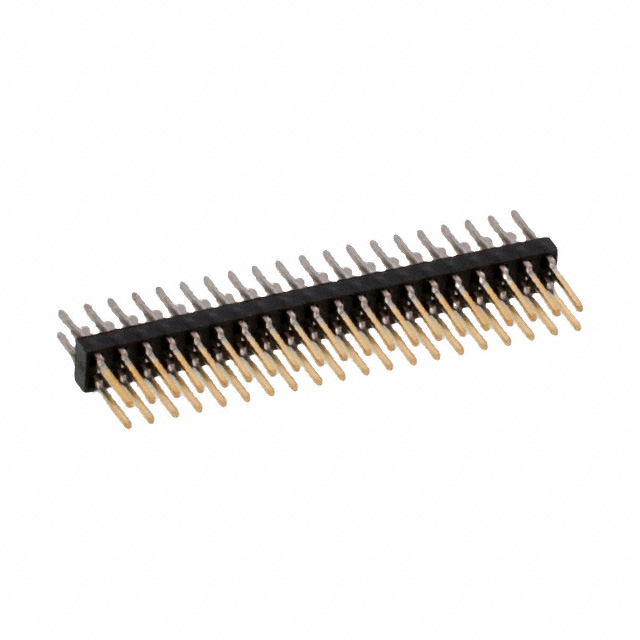

TE Connectivity AMP Connectors 1-103542-9	2.54 µm	100 µin	0.66 in	16.76 mm	Board to Board Cable	Header	0.09 in	2.29 mm	0.32 in	8.13 mm	-55 C	125 °C	Press-Fit Solder	Male Pin	Thermoplastic	0.1 "	2.54 mm	40	0.76 Ám	30 Áin	Square	3 A	2	Black	Tin-Lead	Unshrouded	Copper Alloy	All	UL94 V-0	0.1 in	2.54 mm	Through Hole	Gold	Push-Pull	6.35 mm	0.25 in
TE Connectivity AMP Connectors 1-103542-5	2.54 µm	100 µin	0.66 in	16.76 mm	Board to Board Cable	Header	0.09 in	2.29 mm	0.32 in	8.13 mm	-55 C	125 °C	Press-Fit Solder	Male Pin	Thermoplastic	0.1 "	2.54 mm		0.76 Ám	30 Áin	Square	3 A	2	Black	Tin-Lead	Unshrouded	Copper Alloy	All	UL94 V-0	0.1 in	2.54 mm	Through Hole	Gold	Push-Pull	6.35 mm	0.25 in
TE Connectivity AMP Connectors 6-103542-6	2.54 µm	100 µin	0.66 in	16.76 mm	Board to Board Cable	Header	0.09 in	2.29 mm	0.32 in	8.13 mm	-55 C	125 °C	Press-Fit Solder	Male Pin	Thermoplastic	0.1 "	2.54 mm		0.76 Ám	30 Áin	Square	3 A	2	Black	Tin	Unshrouded	Copper Alloy	All	UL94 V-0	0.1 in	2.54 mm	Through Hole	Gold	Push-Pull	6.35 mm	0.25 in	34
