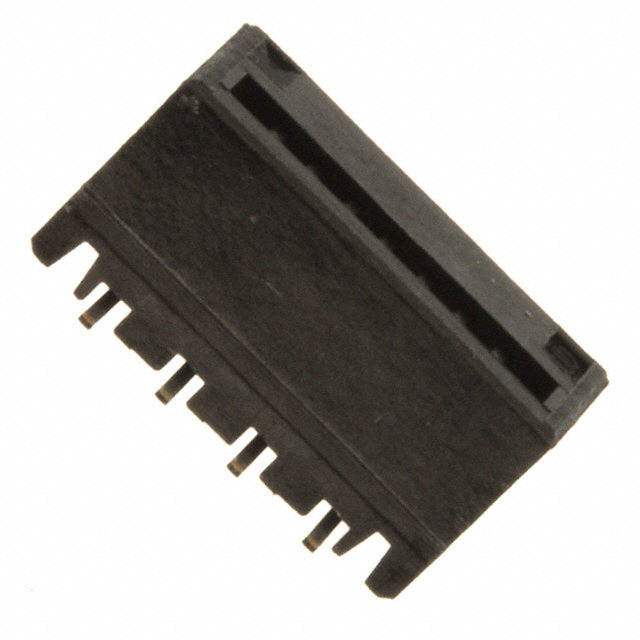

HFW7S Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN FFC FPC VERT 7POS 1MM SMD
| Part | Number of Positions | Housing Color | Voltage Rating | Pitch [x] | Pitch [x] | Height Above Board | Height Above Board | Termination | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | FFC, FCB Thickness [z] | Connector/Contact Type | Flat Flex Type | Mating Cycles | Cable End Type | Contact Finish | Material Flammability Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 7 | Black | 100 V | 0.039 in | 1 mm | 5.3 mm | 0.209 in | Solder | Glass Filled Nylon 6T Polyamide (PA6T) | 85 °C | -55 °C | Phosphor Bronze | 0.3 mm 0.33 mm | Contacts Vertical - 1 Sided | FFC FPC | 30 | Straight Tapered | Tin | UL94 V-0 | Surface Mount |
