EVQ-PP Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Actuator Height off PCB, Vertical [z]	Switch Function	Illumination	Contact Rating @ Voltage	Actuator Type	Outline [y]	Outline [x]	Circuit	Switch Travel	Actuator Orientation	Mounting Type	Termination Style	Operating Force	Mechanical Life	Features

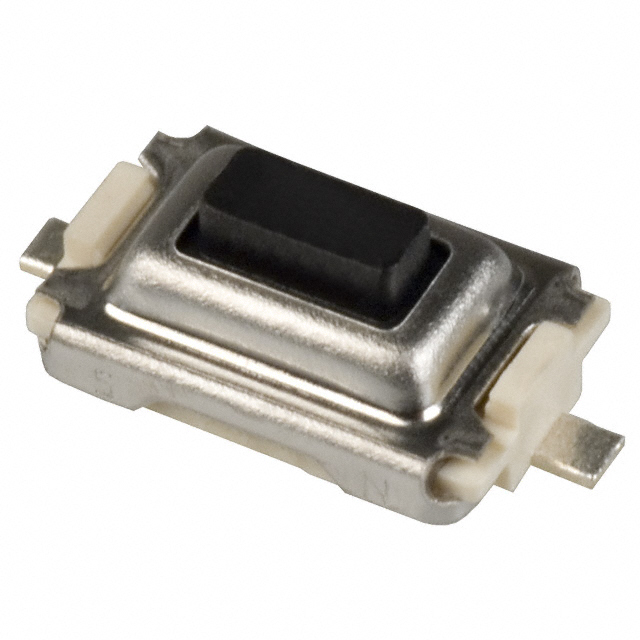

Panasonic Industrial Automation Sales EVQ-PPFA25	85 °C	-40 °C	Dust Proof	2.5 mm	Off-Mom	Non-Illuminated	0.05 A 12 VDC	Standard	3.5 mm	6 mm	SPST-NO	0.25 mm	Top Actuated	Surface Mount	Gull Wing

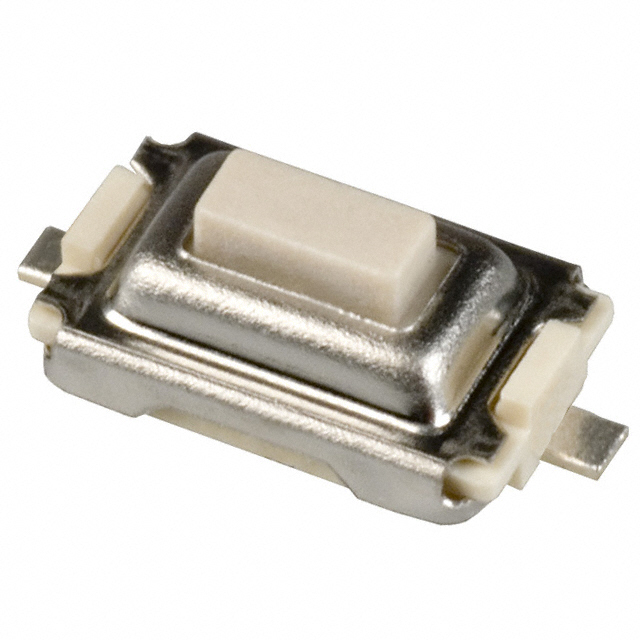

Panasonic Industrial Automation Sales EVQ-PPHA25	85 °C	-40 °C	Dust Proof	2.5 mm	Off-Mom	Non-Illuminated	0.05 A 12 VDC	Standard	3.5 mm	6 mm	SPST-NO	0.25 mm	Top Actuated	Surface Mount	Gull Wing	240 gf	30000 Steps

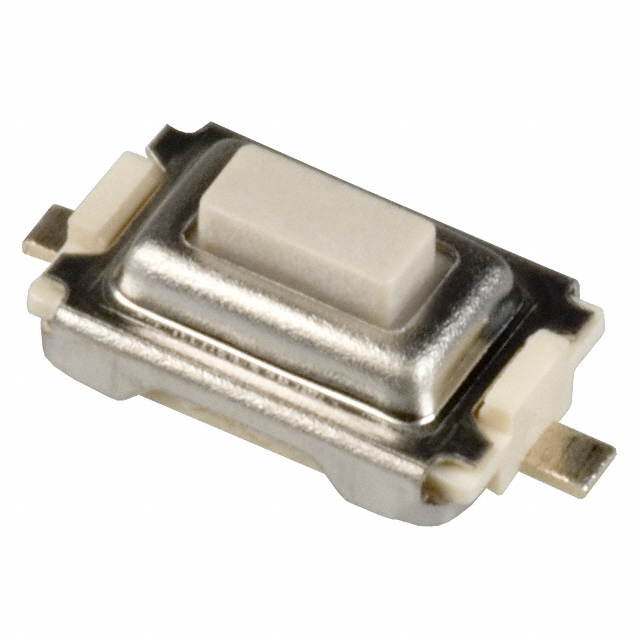

Panasonic Industrial Automation Sales EVQ-PPRA25	85 °C	-40 °C	Dust Proof	2.5 mm	Off-Mom	Non-Illuminated	0.05 A 12 VDC	Standard	3.5 mm	6 mm	SPST-NO	0.25 mm	Top Actuated	Surface Mount	Gull Wing	240 gf	30000 Steps	Grounding Pin
