NCP629 Series

High Performance CMOS LDO Regulator with Enable

Catalog

High Performance CMOS LDO Regulator with Enable

Part	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Mounting Type	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Dropout (Max) [Max]	Number of Regulators	Output Configuration	Output Type	Current - Output	PSRR [Max]	PSRR [Min]	Control Features	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Voltage - Output (Min/Fixed)

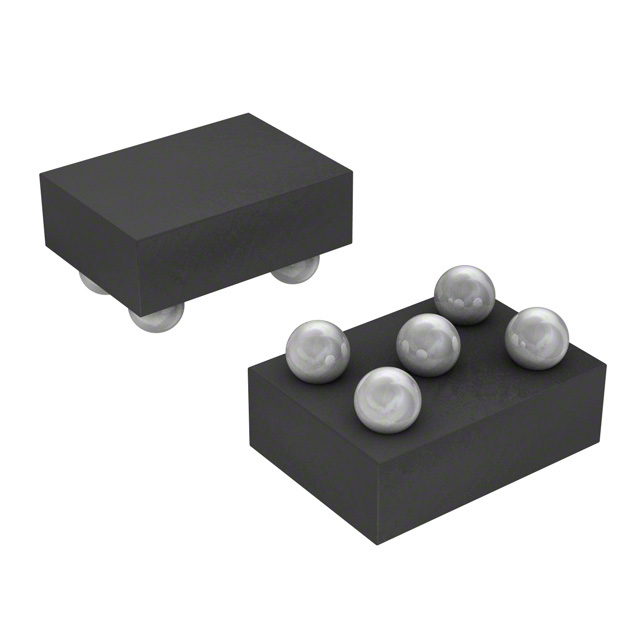

ON Semiconductor NCP629FC15T2G	6 V	170 µA	Surface Mount	Over Current Over Temperature	125 °C	-40 °C	0.225 V	1	Positive	1.81 mOhm	150 mA	38 dB	62 dB	Enable	5-FlipChip	1.19	1.028	1.5 V

Catalog

High Performance CMOS LDO Regulator with Enable

Key Features

• Output Voltage Options:1.5 V, 1.8 V, 2.8 V, 3.0 V, 3.3 V, 3.5 V, 5.0 V

• Ultra-Low Dropout Voltage of 150 mV at 150 mA

• Fast Enable Turn-on Time of 15 µs

• Wide Supply Voltage Operating Range

• Supports sub-1 V Enable Threshold

• Excellent Line and Load Regulation

• High Accuracy up to 2% Output Voltage Tolerance over All Operating Conditions

• Typical Noise Voltage of 50 µVrms without a Bypass Capacitor

• Ultra Small CSP Footprint and Height: 1.028 x 1.19 mm, Max Height 0.6mm

• These are Pb-Free Devices

Description

The NCP629 provides 150 mA of output current at fixed voltage options. It is designed for portable battery powered applications and offers high performance features such as low power operation, fast enable response time, and low dropout.The device is designed to be used with low cost ceramic capacitors.
