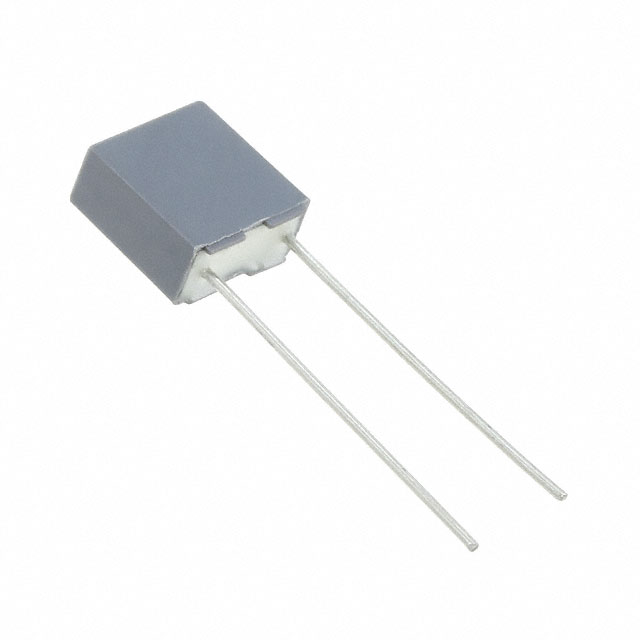

R79PC Series

Manufacturer: KEMET

Catalog

CAP FILM 1000PF 5% 630VDC RADIAL

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Package / Case	Capacitance	Tolerance	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET R79PC1100Z340J	3.5 mm	7.2 mm	0.138 in	0.283 "	220 V	0.197 "	5 mm	-55 C	105 ░C	High Frequency Switching	Through Hole	Radial	0.001 µF	5 %	Polypropylene (PP) Metallized	0.299 in	7.6 mm	PC Pins
KEMET R79PC1150AA40J	3.5 mm	7.2 mm	0.138 in	0.283 "	220 V	0.197 "	5 mm	-55 C	105 ░C	High Frequency Switching	Through Hole	Radial	1500 pF	5 %	Polypropylene (PP) Metallized	0.299 in	7.6 mm	PC Pins
KEMET R79PC1220Z340J	3.5 mm	7.2 mm	0.138 in	0.283 "	220 V	0.197 "	5 mm	-55 C	105 ░C	High Frequency Switching	Through Hole	Radial	2200 pF	5 %	Polypropylene (PP) Metallized	0.299 in	7.6 mm	PC Pins
KEMET R79PC2100Z340J	6 mm	7.2 mm	0.236 "	0.283 "	220 V	0.197 "	5 mm	-55 C	105 ░C	High Frequency Switching	Through Hole	Radial	10000 pF	5 %	Polypropylene (PP) Metallized			PC Pins	11.1 mm	0.437 in
KEMET R79PC1470Z340J	4.5 mm	7.2 mm	0.177 "	0.283 "	220 V	0.197 "	5 mm	-55 C	105 ░C	High Frequency Switching	Through Hole	Radial	0.0047 µF	5 %	Polypropylene (PP) Metallized	0.378 "	9.6 mm	PC Pins
