PPPC252 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 50POS 0.1 GOLD PCB

Part	Contact Finish Thickness - Post	Contact Material	Contact Shape	Insulation Material	Mounting Type	Current Rating (Amps)	Fastening Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Color	Number of Positions	Number of Rows [custom]	Contact Finish - Post	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Voltage Rating	Termination	Contact Type	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post

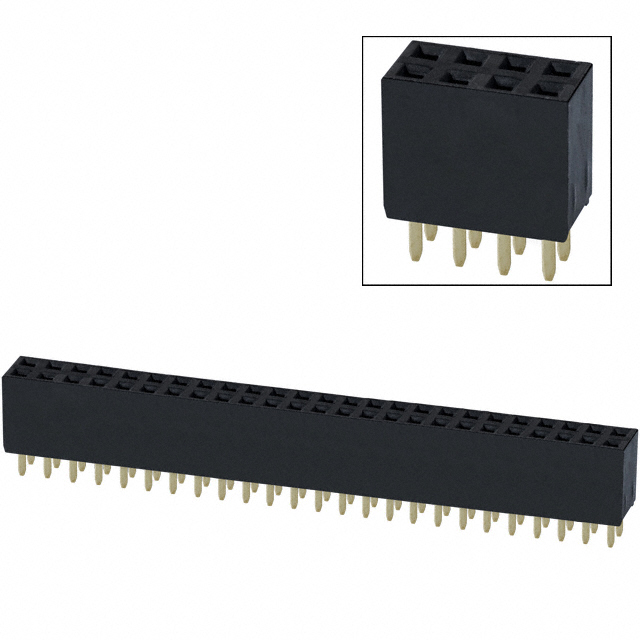

Sullins Connector Solutions PPPC252LFBN-RC	Flash	Phosphor Bronze	Square	Polyester	Through Hole	3 A	Push-Pull	0.1 "	2.54 mm	-40 C	105 ░C	Header	Black	50	2	Gold	0.335 "	8.51 mm	Flash	UL94 V-0	0.1 in	2.54 mm	Gold	250 V	Solder	Female Socket	All	0.126 "	3.2 mm
Sullins Connector Solutions PPPC252KFMS	Flash	Phosphor Bronze	Square	Polyester	Surface Mount	3 A	Push-Pull	0.1 "	2.54 mm	-40 C	125 °C	Header	Black	50	2	Gold		7.6 mm	Flash	UL94 V-0	0.1 in	2.54 mm	Gold	250 V	Solder	Female Socket	All			0.299 "

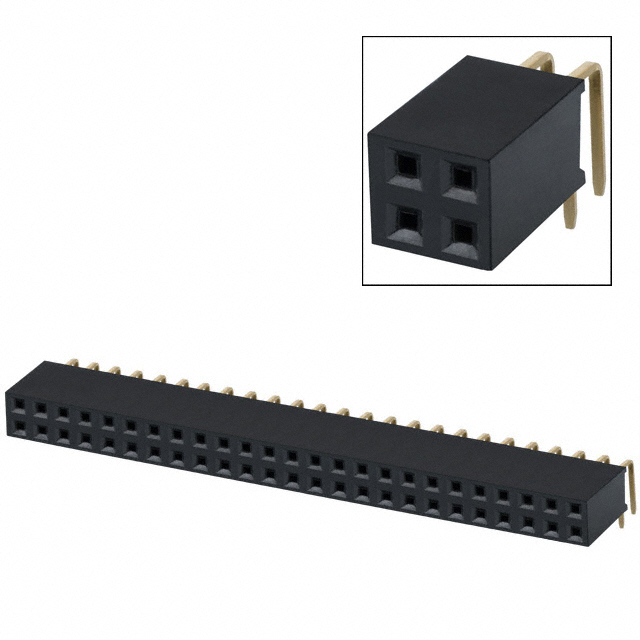

Sullins Connector Solutions PPPC252LJBN-RC	Flash	Phosphor Bronze	Square	Polyester	Right Angle Through Hole	3 A	Push-Pull	0.1 "	2.54 mm	-40 C	105 ░C	Header	Black	50	2	Gold			Flash	UL94 V-0	0.1 in	2.54 mm	Gold	250 V	Solder	Female Socket	All			0.2 in	5.08 mm	0.124 in	3.15 mm
Sullins Connector Solutions PPPC252LFBN	Flash	Phosphor Bronze	Square	Polyester	Through Hole	3 A	Push-Pull	0.1 "	2.54 mm	-40 C	105 ░C	Header	Black	50	2	Gold	0.335 "	8.51 mm	Flash	UL94 V-0	0.1 in	2.54 mm	Gold	250 V	Solder	Female Socket	All	0.126 "	3.2 mm
Sullins Connector Solutions PPPC252LJBN	Flash	Phosphor Bronze	Square	Polyester	Right Angle Through Hole	3 A	Push-Pull	0.1 "	2.54 mm	-40 C	105 ░C	Header	Black	50	2	Gold			Flash	UL94 V-0	0.1 in	2.54 mm	Gold	250 V	Solder	Female Socket	All			0.2 in	5.08 mm	0.124 in	3.15 mm
