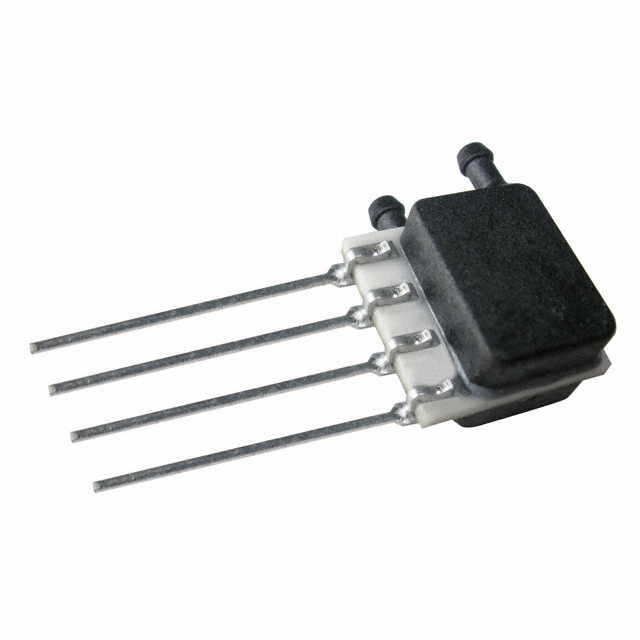

HSCSRRN Series

Catalog

TRUSTABILITY

Part	Maximum Pressure	Maximum Pressure	Pressure Type	Port Style	Operating Pressure	Operating Pressure	Port Size	Port Size [x]	Port Size [x]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Output [Min]	Output [Max]	Termination Style	Package / Case	Output Type	Features	Accuracy	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Mounting Type	Port Size	Port Size
Honeywell Sensing and Productivity Solutions HSCSRRN002NDAA3
Honeywell Sensing and Productivity Solutions HSCSRRN025MD2A3
Honeywell Sensing and Productivity Solutions HSCSRRN001NDAA3	9.76 PSI	67.28 kPa	Differential	Barbed	0.04 PSI	0.25 kPa	Dual Male Tube	1.92 mm	0.08 "	Board Mount	85 °C	-20 C	0.33 V	2.97 V	PC Pin	4-SIP Dual Ports Same Side	Analog Voltage	Amplified Output Temperature Compensated	0.25 %	3.27 V	3.33 V	4-SIP	Through Hole
Honeywell Sensing and Productivity Solutions HSCSRRN004MGAA3		9.79 PSI 67.5 kPa	Vented Gauge	Barbed	0.06 PSI	0.4 kPa	Dual Male Tube			Board Mount	85 °C	-20 C	0.33 V	2.97 V	PC Pin	4-SIP Dual Ports Same Side	Analog Voltage	Amplified Output Temperature Compensated	0.25 %	3.27 V	3.33 V	4-SIP	Through Hole	1.93 mm	0.08 "
