ELG337M Series
Manufacturer: KEMET
Beta
⌘K

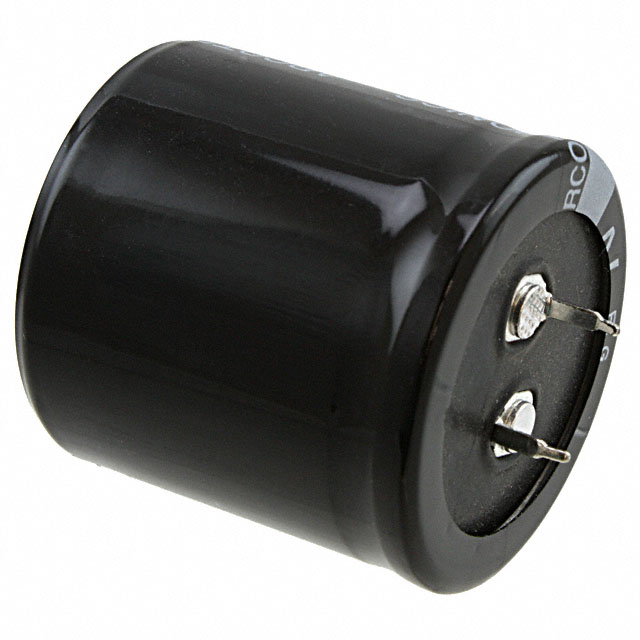

ELECTROLYTIC CAPACITOR, SNAP-IN, ELG SERIES, 330 F, 20%, 400 V, 35 MM, 0.195 OHM ROHS COMPLIANT: YES
| Part | Ripple Current @ High Frequency | Lifetime @ Temp. | Applications | Tolerance | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Ripple Current @ Low Frequency | ESR (Equivalent Series Resistance) | Package / Case | Capacitance | Mounting Type | Polarization | Lead Spacing | Lead Spacing | Voltage - Rated | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 1.9575 A | 2000 Hrs | General Purpose | 20 % | 37 mm | 1.457 in | 1.35 A | 195 mOhm | Radial Can - Snap-In | 330 µF | Through Hole | Polar | 0.394 in | 10 mm | 400 V | 1.378 " | 35 mm | 105 ░C | -25 °C |
