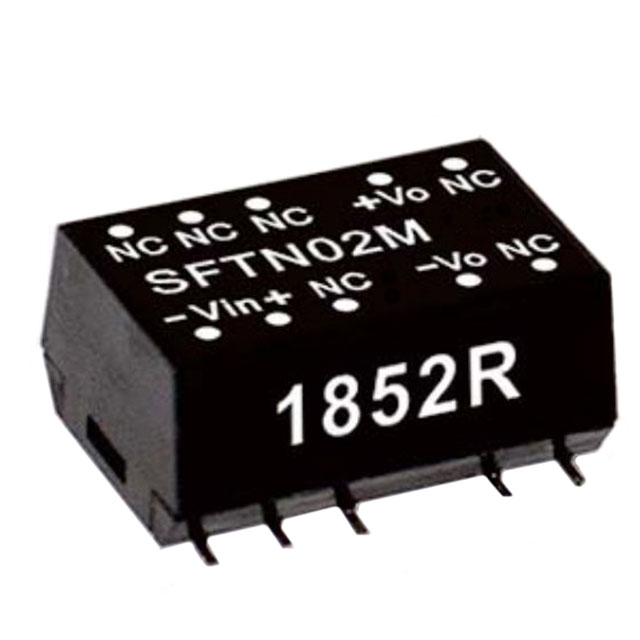

SFTN02 Series

Catalog

DC/DC CONVERTER

Part	Number of Outputs	Approval Agency	Voltage - Isolation	Efficiency	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Applications	Package / Case	Current - Output (Max) [Max]	Voltage - Output 1	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
MEAN WELL USA Inc. SFTN02L-15	1	CE EAC UKCA	3000 V	81 %	1.995 W	0.6 "	0.43 in	15.2 mm	0.28 "	7.1 mm	10.9 mm	5.5 V	4.5 V	ITE (Commercial)	12-SMD Module 10 Leads	133 mA	15 V	Isolated Module	-40 C	100 °C	Surface Mount
MEAN WELL USA Inc. SFTN02M-05	1	CE EAC UKCA	3000 V	80 %	2 W	0.6 "	0.43 in	15.2 mm	0.28 "	7.1 mm	10.9 mm	13.2 V	10.8 V	ITE (Commercial)	12-SMD Module 10 Leads	400 mA	5 V	Isolated Module	-40 C	100 °C	Surface Mount
MEAN WELL USA Inc. SFTN02N-15	1	CE EAC UKCA	3000 V	80 %	1.995 W	0.6 "	0.43 in	15.2 mm	0.28 "	7.1 mm	10.9 mm	26.4 V	21.6 V	ITE (Commercial)	12-SMD Module 10 Leads	133 mA	15 V	Isolated Module	-40 C	100 °C	Surface Mount
MEAN WELL USA Inc. SFTN02L-12	1	CE EAC UKCA	3000 V	80 %	2.004 W	0.6 "	0.43 in	15.2 mm	0.28 "	7.1 mm	10.9 mm	5.5 V	4.5 V	ITE (Commercial)	12-SMD Module 10 Leads	167 mA	12 V	Isolated Module	-40 C	100 °C	Surface Mount
MEAN WELL USA Inc. SFTN02M-12	1	CE EAC UKCA	3000 V	81 %	2.004 W	0.6 "	0.43 in	15.2 mm	0.28 "	7.1 mm	10.9 mm	13.2 V	10.8 V	ITE (Commercial)	12-SMD Module 10 Leads	167 mA	12 V	Isolated Module	-40 C	100 °C	Surface Mount
MEAN WELL USA Inc. SFTN02N-05	1	CE EAC UKCA	3000 V	78 %	2 W	0.6 "	0.43 in	15.2 mm	0.28 "	7.1 mm	10.9 mm	26.4 V	21.6 V	ITE (Commercial)	12-SMD Module 10 Leads	400 mA	5 V	Isolated Module	-40 C	100 °C	Surface Mount
