737-080 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 80POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Number of Positions	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Termination	Read Out	Pitch	Pitch	Color	Number of Rows [custom]	Mounting Type	Gender	Number of Positions/Bay/Row [custom]	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish
EDAC Inc. 737-080-541-206	2	Polyester Thermoplastic	80	Copper Alloy	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit Wire Wrap	Dual	3.96 mm	0.156 in	Black	2	Through Hole	Female	40	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 737-080-560-201	2	Polyester Thermoplastic	80	Copper Alloy	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit	Dual	3.96 mm	0.156 in	Black	2	Through Hole	Female	40	Cantilever Make Before Break	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 737-080-545-206	2	Polyester Thermoplastic	80	Copper Alloy	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit Wire Wrap	Dual	3.96 mm	0.156 in	Black	2	Through Hole	Female	40	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 737-080-545-201	2	Polyester Thermoplastic	80	Copper Alloy	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit Wire Wrap	Dual	3.96 mm	0.156 in	Black	2	Through Hole	Female	40	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 737-080-540-201	2	Polyester Thermoplastic	80	Copper Alloy	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit Wire Wrap	Dual	3.96 mm	0.156 in	Black	2	Through Hole	Female	40	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 737-080-522-201	2	Polyester Thermoplastic	80	Copper Alloy	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit	Dual	3.96 mm	0.156 in	Black	2	Through Hole	Female	40	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 737-080-525-201	2	Polyester Thermoplastic	80	Copper Alloy	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit	Dual	3.96 mm	0.156 in	Black	2	Through Hole	Female	40	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

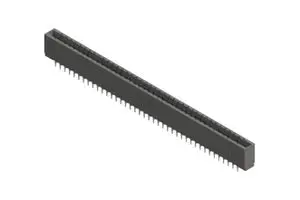

EDAC Inc. 737-080-520-201	2	Polyester Thermoplastic	80	Copper Alloy	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit	Dual	3.96 mm	0.156 in	Black	2	Through Hole	Female	40	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 737-080-520-206	2	Polyester Thermoplastic	80	Copper Alloy	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit	Dual	3.96 mm	0.156 in	Black	2	Through Hole	Female	40	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 737-080-541-201	2	Polyester Thermoplastic	80	Copper Alloy	30 Áin	0.76 Ám	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit Wire Wrap	Dual	3.96 mm	0.156 in	Black	2	Through Hole	Female	40	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
