AA2810 Series

Catalog

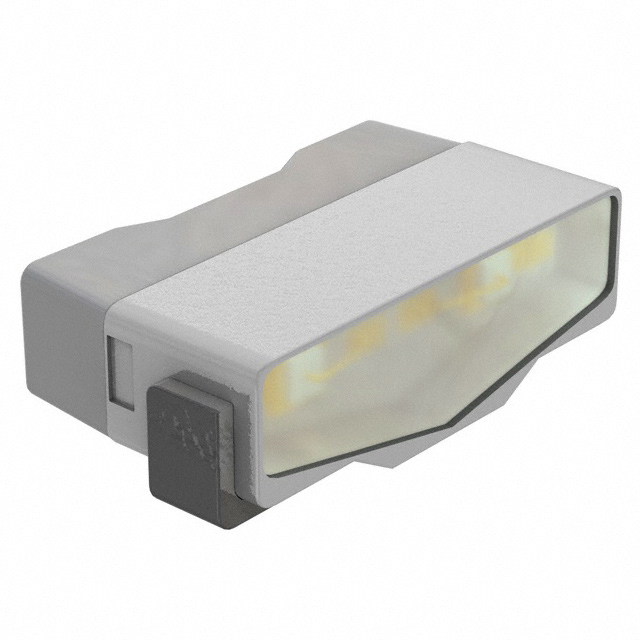

LED GREEN CLEAR CHIP SMD R/A

Part	Lens Style	Viewing Angle	Height (Max) [Max] [z]	Lens Size [x]	Lens Size [y]	Millicandela Rating	Color	Lens Color	Voltage - Forward (Vf) (Typ)	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Supplier Device Package	Lens Transparency	Wavelength - Dominant	Configuration	Package / Case	Wavelength - Peak
Kingbright AA2810ACGSK	Rectangle with Flat Top	110 °	0.8 mm	2.3 mm	0.57 mm	60 mcd	Green	Colorless	2.1 V	Right Angle Surface Mount	1.2 mm	2.8 mm	20 mA	Chip LED	Clear	570 nm	Standard	2-SMD J-Lead
Kingbright AA2810AZGS	Rectangle with Flat Top	110 °	0.8 mm	2.3 mm	0.57 mm	700 mcd	Green	Colorless	3.3 V	Right Angle Surface Mount	1.2 mm	2.8 mm	20 mA	SMD	Clear	525 nm	Standard	2-SMD J-Lead	515 nm

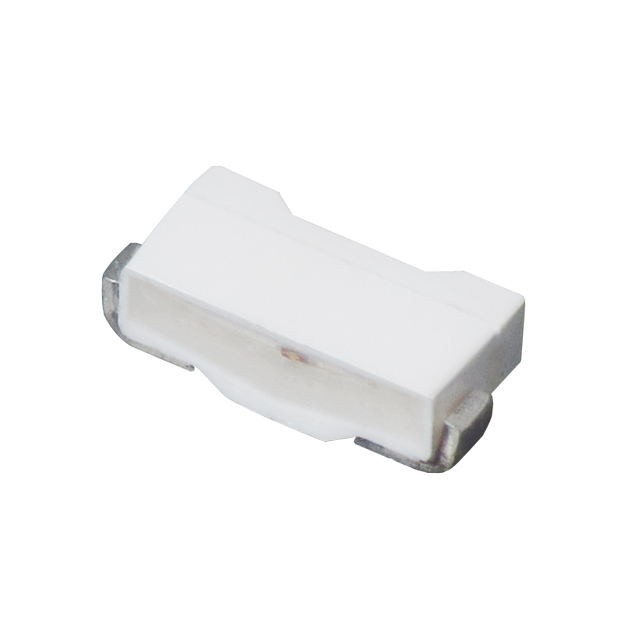

Kingbright AA2810ASYSK/J3	Rectangle with Flat Top	110 °	0.9 mm	2.3 mm	0.57 mm	550 mcd	Yellow	Colorless	2 V	Right Angle Surface Mount	1.2 mm	2.5 mm	20 mA	2-SMD	Clear	590 nm	Independent	2-SMD J-Lead	590 nm
Kingbright AA2810ASESK/J3	Rectangle with Flat Top	110 °	0.9 mm	2.3 mm	0.57 mm	1600 mcd	Red	Colorless	2.2 V	Right Angle Surface Mount	1.2 mm	2.5 mm	20 mA	2-SMD	Clear	625 nm	Independent	2-SMD J-Lead	640 nm
Kingbright AA2810AZGSK	Rectangle with Flat Top	110 °	0.8 mm	2.3 mm	0.57 mm	600 mcd	Green	Colorless	3.3 V	Right Angle Surface Mount	1.2 mm	2.8 mm	20 mA	Chip LED	Clear	525 nm	Standard	2-SMD J-Lead	515 nm
Kingbright AA2810ASESK	Rectangle with Flat Top	110 °	0.9 mm	2.3 mm	0.57 mm	250 mcd		Colorless	2.1 V	Right Angle Surface Mount	1.2 mm	2.5 mm	20 mA	SMD	Clear	601 nm	Standard	2-SMD J-Lead	610 nm
Kingbright AA2810ASYS/J3	Rectangle with Flat Top	110 °	0.9 mm	2.3 mm	0.57 mm	600 mcd	Yellow	Colorless	2 V	Right Angle Surface Mount	1.2 mm	2.5 mm	20 mA	SMD	Clear	590 nm	Standard	2-SMD J-Lead	590 nm
Kingbright AA2810AQBS/D	Rectangle with Flat Top	110 °	0.8 mm	2.3 mm	0.57 mm	150 mcd	Blue	Colorless	3.3 V	Right Angle Surface Mount	1.2 mm	2.8 mm	20 mA	Chip LED	Clear	465 nm	Standard	2-SMD J-Lead	460 nm
Kingbright AA2810ASURSK	Rectangle with Flat Top	110 °	0.9 mm	2.3 mm	0.57 mm	100 mcd	Red	Colorless	1.95 V	Right Angle Surface Mount	1.2 mm	2.5 mm	20 mA	Chip LED	Clear	630 nm	Standard	2-SMD J-Lead	645 nm
Kingbright AA2810ASES/J3	Rectangle with Flat Top	110 °	0.9 mm	2.3 mm	0.57 mm	550 mcd	Red	Colorless	2.2 V	Right Angle Surface Mount	1.2 mm	2.5 mm	20 mA	Chip LED	Clear	625 nm	Standard	2-SMD J-Lead	640 nm
