ND3KC16 Series

Catalog

SW ROTARY DIP HEX COMP 0.1A 5V

Part	Mechanical Life	Body Material	Length [x]	Length [x]	Electrical Life	Number of Positions	Features	Circuit	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Level	Height Above Board	Height Above Board	Contact Material	Termination Style	Mounting Type	Contact Finish	Voltage Rating	Current Rating (Amps)	Pitch	Pitch	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]

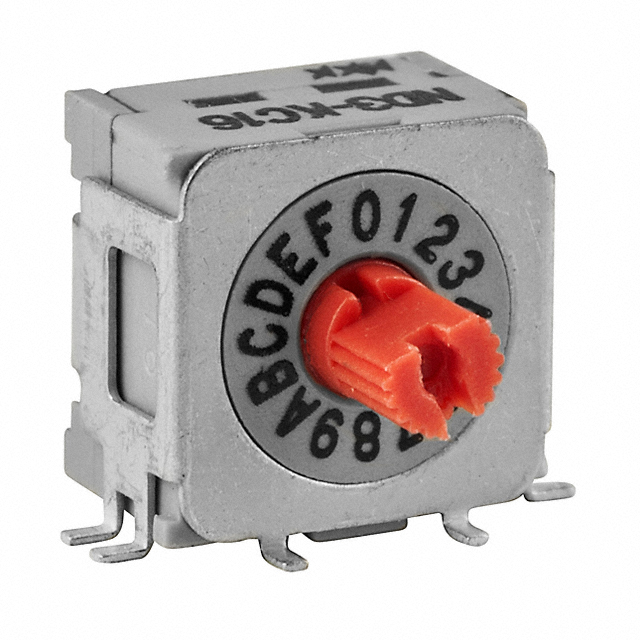

NKK Switches ND3KC16H	20000 Cycles	Polyamide (PA) Nylon Glass Filled	0.32 in	8.13 mm	20000 Steps	16	Epoxy Sealed Terminals	Hexadecimal Complement	Rotary with Shaft	85 °C	-25 °C	Raised	8.03 mm	0.316 in	Beryllium Copper	Gull Wing	Right Angle Surface Mount	Gold	5 V	100 mA	0.05 "	1.27 mm	Half
NKK Switches ND3KC16H-R	20000 Cycles	Polyamide (PA) Nylon Glass Filled	0.32 in	8.13 mm	20000 Steps	16	Epoxy Sealed Terminals	Hexadecimal Complement	Rotary with Shaft	85 °C	-25 °C	Raised	8.03 mm	0.316 in	Beryllium Copper	Gull Wing	Right Angle Surface Mount	Gold	5 V	100 mA	0.05 "	1.27 mm	Half
NKK Switches ND3KC16P	20000 Cycles	Polyamide (PA) Nylon Glass Filled	0.32 in	8.13 mm	20000 Steps	16	Epoxy Sealed Terminals	Hexadecimal Complement	Rotary with Shaft	85 °C	-25 °C	Raised			Beryllium Copper	Gull Wing	Surface Mount	Gold	5 V	100 mA		2.54 mm		0.1 "	8.8 mm	0.346 in
