KFB1748 Series
Manufacturer: Delta Electronics
Beta
⌘K

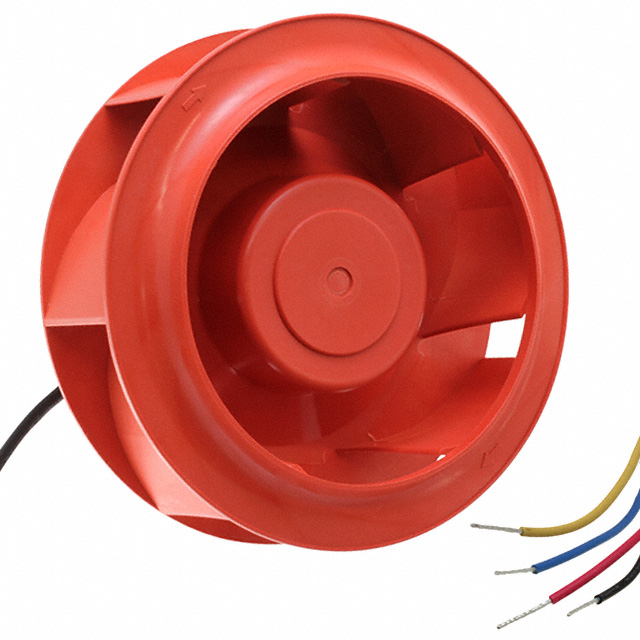

FAN IMP MTRZD 175X69MM 48VDC
| Part | Material - Frame | Material - Blade | Lifetime @ Temp. | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | RPM | Size / Dimension | Size / Dimension [diameter] | Ingress Protection | Weight [custom] | Weight [custom] | Termination | Fan Type | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Features | Bearing Type | Width [y] | Air Flow | Air Flow | Approval Agency | Static Pressure | Static Pressure | Noise | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Aluminum | Plastic | 70000 Hrs | 0.72 A | 36 VDC | 57 VDC | 3100 RPM | Round | 175 mm | IP54 - Dust Protected Water Resistant | 0.67 kg | 1.5 lbs | 4 Wire Leads | Motorized Impellers | 34.56 W | 70 °C | -10 °C | 48 VDC | GR-487 (Salt Fog Protection) Locked Rotor Protection PWM Control Speed Sensor (Tach) | Ball | 69 mm | 8.87 m³/min | 316.9 CFM | CE CSA UL VDE | 1.422 in H2O | 354.2 Pa | |||
 Delta Electronics | Aluminum | Plastic | 1.15 A | 28 V | 60 V | 4200 RPM | Round | 175 mm | 2 Wire Leads | Motorized Impellers | 55.2 W | 48 VDC | Ball | 54 mm | 8.33 m³/min | 297.4 CFM | CE CSA UL VDE | 2.361 in H2O | 588.1 Pa | 73.5 dB(A) | 635 g | 1.4 lbs |
