306-006 Series
Manufacturer: EDAC Inc.
Beta
⌘K

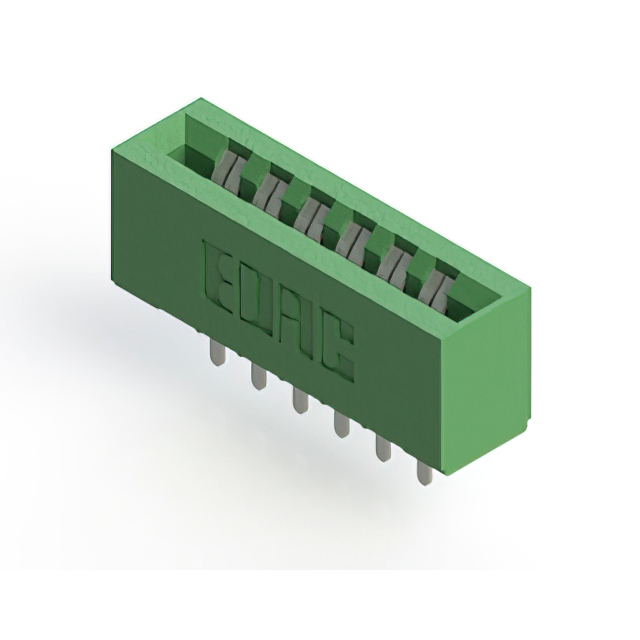

CONN EDGE DUAL FMALE 12POS 0.156
| Part | Material - Insulation | Termination Rows | Pitch | Pitch | Contact Finish | Number of Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Read Out | Gender | Mounting Type | Number of Positions/Bay/Row | Contact Type | Color | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Number of Positions | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Female | Through Hole | 6 | Cantilever | Green | Solder | -40 C | 105 ░C | Non Specified - Dual Edge | 12 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Copper Alloy | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Female | Through Hole | 6 | Cantilever | Green | Solder | -40 C | 105 ░C | Non Specified - Dual Edge | 12 | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | Copper Alloy | 0.25 Ám | 10 Áin | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Tin | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Female | Through Hole | 6 | Cantilever | Green | Solder | -40 C | 105 ░C | Non Specified - Dual Edge | 12 | Copper Alloy | ||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Tin | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Female | Panel Mount | 6 | Cantilever | Green | Solder Eyelet(s) | -40 C | 105 ░C | Non Specified - Dual Edge | 12 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Tin | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Female | Panel Mount | 6 | Cantilever | Green | Solder Eyelet(s) | -40 C | 105 ░C | Non Specified - Dual Edge | 12 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Female | Panel Mount Through Hole | 6 | Cantilever | Green | Solder | -40 C | 105 ░C | Non Specified - Dual Edge | 12 | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | Copper Alloy | 0.25 Ám | 10 Áin | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Tin | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Female | Panel Mount | 6 | Cantilever | Green | Solder Eyelet(s) | -40 C | 105 ░C | Non Specified - Dual Edge | 12 | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | Copper Alloy | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Female | Through Hole | 6 | Cantilever | Green | Solder | -40 C | 105 ░C | Non Specified - Dual Edge | 12 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Copper Alloy | 0.25 Ám | 10 Áin | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Tin | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Female | Panel Mount | 6 | Cantilever | Green | Solder Eyelet(s) | -40 C | 105 ░C | Non Specified - Dual Edge | 12 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Copper Alloy | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Tin | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Female | Panel Mount Through Hole | 6 | Cantilever | Green | Solder | -40 C | 105 ░C | Non Specified - Dual Edge | 12 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Card Guides |
