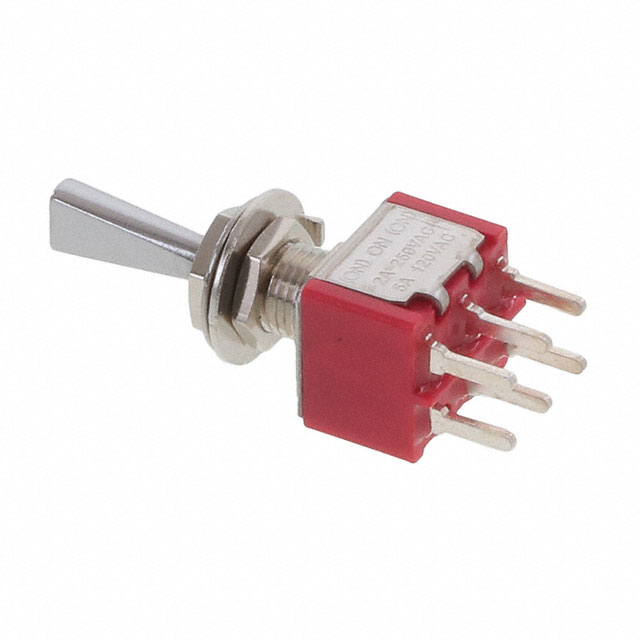

100DP8 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TOGGLE DP3T 5A 120V
| Part | Electrical Life (Cycles) | Actuator Material | Circuit | Current Rating | Panel Cutout Diameter | Panel Cutout Shape | Switch Function | Features | Bushing Thread | Actuator Length | Termination Style | Illumination | Mounting Type | Voltage Rating - AC | Operating Temperature (Max) | Operating Temperature (Min) | Actuator Type | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 40000 | Brass Chrome Plated | SP3T | 5 A | 0.25 " | Circular | Mom-On-Mom | Jumper needed to achieve triple throw | 1/4-40 | 10.41 mm | PC Pin | Non-Illuminated | Through Hole | 120 V | 85 °C | -30 °C | Standard Round | 28 V |
E-Switch | 40000 | Brass Chrome Plated | SP3T | 5 A | 0.25 " | Circular | Mom-On-Mom | Jumper needed to achieve triple throw | 1/4-40 | 10.41 mm | PC Pin | Non-Illuminated | Through Hole | 120 V | 85 °C | -30 °C | Standard Round | 28 V |
 E-Switch | 40000 | Brass Chrome Plated | SP3T | 5 A | 0.25 " | Circular | Mom-On-Mom | Jumper needed to achieve triple throw | 1/4-40 | 12.3 mm | PC Pin | Non-Illuminated | Panel Mount | 120 V | 85 °C | -30 °C | Flat Anti-Rotation | 28 V |
