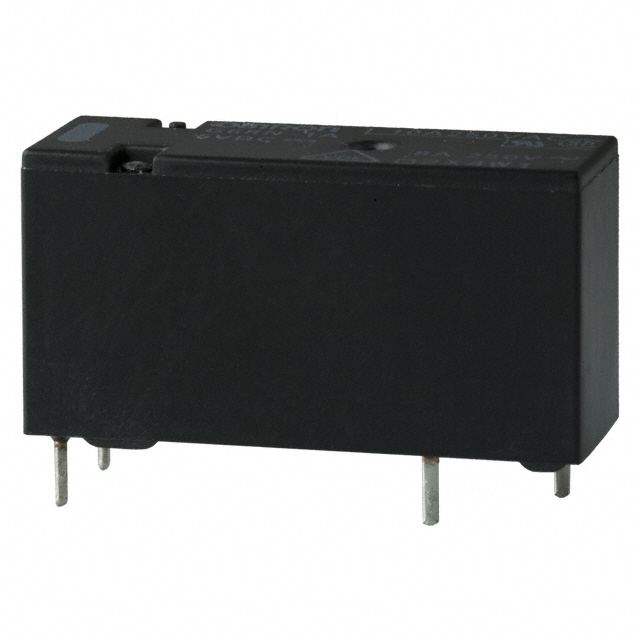

G6RN-1 D Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 8A 24V
| Part | Coil Type | Seal Rating | Coil Voltage | Mounting Type | Load - Max Switching | Release Time | Contact Material | Must Release Voltage | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Coil Current | Operate Time | Coil Resistance | Relay Type | Contact Rating (Current) | Switching Voltage [Max] | Contact Form | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Non Latching | Sealed - Fully | 24 VDC | Through Hole | 240 W 2000 VA | 5 ms | Silver Alloy | 2.4 VDC | PC Pin | 85 °C | -40 °C | 16.8 VDC | 9.2 mA | 15 ms | 2.62 kOhms | General Purpose | 8 A | 30 VDC 250 VAC | SPDT (1 Form C) | CSA cURus UR VDE |
Omron Electronics Inc-EMC Div | Non Latching | Sealed - Fully | 48 VDC | Through Hole | 240 W 2000 VA | 5 ms | Silver Alloy | 4.8 VDC | PC Pin | 85 °C | -40 °C | 33.6 VDC | 5.2 mA | 15 ms | 9.21 kOhms | General Purpose | 8 A | 30 VDC 250 VAC | SPDT (1 Form C) | CSA cURus UR VDE |
Omron Electronics Inc-EMC Div | Non Latching | Sealed - Fully | 5 VDC | Through Hole | 240 W 2000 VA | 5 ms | Silver Alloy | 0.5 VDC | PC Pin | 85 °C | -40 °C | 3.5 VDC | 44 mA | 15 ms | 114 Ohms | General Purpose | 8 A | 30 VDC 250 VAC | SPDT (1 Form C) | CSA cURus UR VDE |
