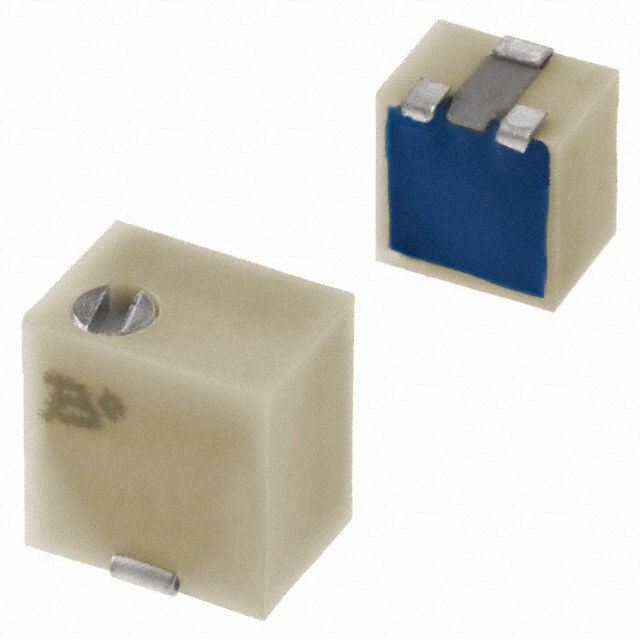

3214W Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES CERMET TRIMMER 200K OHM 10% 0.25W(1/4W) 5(ELEC)TURNS 1.5MM (4.8 X 3.9 X 5.3MM) J-HOOK SMD T/R
| Part | Resistive Material | Adjustment Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Termination Style | Tolerance | Temperature Coefficient | Resistance | Mounting Type | Number of Turns | Power (Watts) | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Cermet | Top Adjustment | 0.138 in | 4.8 mm | 3.5 mm | 0.189 " | J Lead | 10 % | 100 ppm/°C | 200000 Ohms | Surface Mount | 5 | 0.25 W | 0.25 W |
Bourns Inc. | Cermet | Top Adjustment | 0.138 in | 4.8 mm | 3.5 mm | 0.189 " | J Lead | 10 % | 100 ppm/°C | 22 kOhms | Surface Mount | 5 | 0.25 W | 0.25 W |
Bourns Inc. | Cermet | Top Adjustment | 0.138 in | 4.8 mm | 3.5 mm | 0.189 " | J Lead | 10 % | 100 ppm/°C | 5 kOhms | Surface Mount | 5 | 0.25 W | 0.25 W |
Bourns Inc. | Cermet | Top Adjustment | 0.138 in | 4.8 mm | 3.5 mm | 0.189 " | J Lead | 10 % | 100 ppm/°C | Surface Mount | 5 | 0.25 W | 0.25 W | |
Bourns Inc. | Cermet | Top Adjustment | 0.138 in | 4.8 mm | 3.5 mm | 0.189 " | J Lead | 10 % | 100 ppm/°C | 20 Ohms | Surface Mount | 5 | 0.25 W | 0.25 W |
Bourns Inc. | Cermet | Top Adjustment | 0.138 in | 4.8 mm | 3.5 mm | 0.189 " | J Lead | 10 % | 100 ppm/°C | 0.5 kOhms | Surface Mount | 5 | 0.25 W | 0.25 W |
 Bourns Inc. | Cermet | Top Adjustment | 0.138 in | 4.8 mm | 3.5 mm | 0.189 " | J Lead | 10 % | 100 ppm/°C | 10 Ohms | Surface Mount | 5 | 0.25 W | 0.25 W |
Bourns Inc. | Cermet | Top Adjustment | 0.138 in | 4.8 mm | 3.5 mm | 0.189 " | J Lead | 10 % | 100 ppm/°C | 100 Ohms | Surface Mount | 5 | 0.25 W | 0.25 W |
Bourns Inc. | Cermet | Top Adjustment | 0.138 in | 4.8 mm | 3.5 mm | 0.189 " | J Lead | 10 % | 100 ppm/°C | Surface Mount | 5 | 0.25 W | 0.25 W | |
Bourns Inc. | Cermet | Top Adjustment | 0.138 in | 4.8 mm | 3.5 mm | 0.189 " | J Lead | 10 % | 100 ppm/°C | 100 Ohms | Surface Mount | 5 | 0.25 W | 0.25 W |
