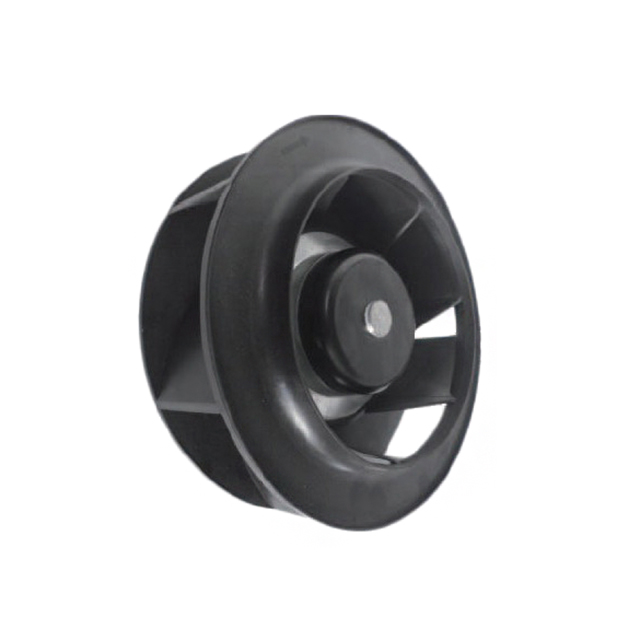

MSI1967 Series

Catalog

FAN IMP MTRZD 190X67MM 24VDC

Part	Current Rating (Amps)	Air Flow	Air Flow	Material - Blade	Features	Approval Agency	Fan Type	Noise	Bearing Type	Static Pressure	Static Pressure	Weight [custom]	Weight [custom]	Size / Dimension [diameter]	Size / Dimension	Width [x]	Termination	RPM	Voltage - Rated
Mechatronics Fan Group MSI1967H24B1+6-BBR	4.7 A	358 CFM	10.02 m³/min	Plastic	Auto Restart PWM Control Speed Sensor (Tach)	CE cUL TUV UL	Motorized Impellers	71 dB(A)	Ball	1.83 in H2O	455.8 Pa	2.9 lbs	1.3 kg	190 mm	Round	67 mm	4 Wire Leads	3000 RPM	24 VDC
Mechatronics Fan Group MSI1967H24B2-BBR	4.7 A	358 CFM	10.02 m³/min	Plastic	Auto Restart Locked Rotor Sensor	CE cUL TUV UL	Motorized Impellers	71 dB(A)	Ball	1.83 in H2O	455.8 Pa	2.9 lbs	1.3 kg	190 mm	Round	67 mm	3 Wire Leads	3000 RPM	24 VDC
Mechatronics Fan Group MSI1967H48B1-BBR	2.5 A	358 CFM	10.02 m³/min	Plastic	Auto Restart Speed Sensor (Tach)	CE cUL TUV UL	Motorized Impellers	71 dB(A)	Ball	1.83 in H2O	455.8 Pa	2.9 lbs	1.3 kg	190 mm	Round	67 mm	3 Wire Leads	3000 RPM	48 VDC
Mechatronics Fan Group MSI1967H48B-BBR	2.5 A	358 CFM	10.02 m³/min	Plastic	Auto Restart	CE cUL TUV UL	Motorized Impellers	71 dB(A)	Ball	1.83 in H2O	455.8 Pa	2.9 lbs	1.3 kg	190 mm	Round	67 mm	2 Wire Leads	3000 RPM	48 VDC
Mechatronics Fan Group MSI1967H48B1+7-BBR	2.5 A	358 CFM	10.02 m³/min	Plastic	Auto Restart Speed Sensor (Tach) Voltage Control	CE cUL TUV UL	Motorized Impellers	71 dB(A)	Ball	1.83 in H2O	455.8 Pa	2.9 lbs	1.3 kg	190 mm	Round	67 mm	3 Wire Leads	3000 RPM	48 VDC
Mechatronics Fan Group MSI1967H48B2-BBR	2.5 A	358 CFM	10.02 m³/min	Plastic	Auto Restart Locked Rotor Sensor	CE cUL TUV UL	Motorized Impellers	71 dB(A)	Ball	1.83 in H2O	455.8 Pa	2.9 lbs	1.3 kg	190 mm	Round	67 mm	3 Wire Leads	3000 RPM	48 VDC
Mechatronics Fan Group MSI1967H48B1+6-BBR	2.5 A	358 CFM	10.02 m³/min	Plastic	Auto Restart PWM Control Speed Sensor (Tach)	CE cUL TUV UL	Motorized Impellers	71 dB(A)	Ball	1.83 in H2O	455.8 Pa	2.9 lbs	1.3 kg	190 mm	Round	67 mm	4 Wire Leads	3000 RPM	48 VDC
Mechatronics Fan Group MSI1967H24B1-BBR	4.7 A	358 CFM	10.02 m³/min	Plastic	Auto Restart Speed Sensor (Tach)	CE cUL TUV UL	Motorized Impellers	71 dB(A)	Ball	1.83 in H2O	455.8 Pa	2.9 lbs	1.3 kg	190 mm	Round	67 mm	3 Wire Leads	3000 RPM	24 VDC
