buccaneer-9000 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
CIRCULAR CONNECTOR, BUCCANEER 9000 SERIES, PANEL MOUNT RECEPTACLE, 8 CONTACTS, CRIMP SOCKET
| Part | Primary Material | Number of Positions | Material Flammability Rating | Contact Finish - Mating | Fastening Type | Termination | Current Rating (Amps) | Color | Contact Material | Mounting Type | Orientation | Shell Material | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Mounting Feature | Connector Type | Cable Opening | Cable Opening | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Plastic | 8 | UL94 V-0 | Silver | Threaded | Crimp | 13 A 80 A | Black | Copper Alloy | Panel Mount | Keyed | Acetal Polyoxymethylene (POM) | IP68 - Dust Tight Waterproof | -55 C | 125 °C | Unshielded | Flange | Receptacle Female Sockets | |||

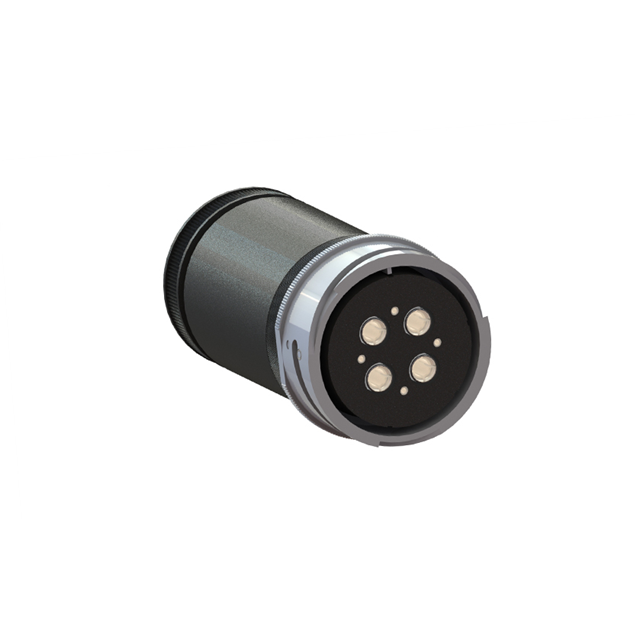

 BULGIN LIMITED | Plastic | 8 | UL94 V-0 | Silver | Bayonet Lock | Crimp | 13 A 80 A | Black | Copper Alloy | Free Hanging (In-Line) | Keyed | Acetal Polyoxymethylene (POM) | IP68 - Dust Tight Waterproof | -55 C | 125 °C | Unshielded | Receptacle Female Sockets | 48.26 mm | 1.9 in | Backshell |
