R75LN Series

Manufacturer: KEMET

Catalog

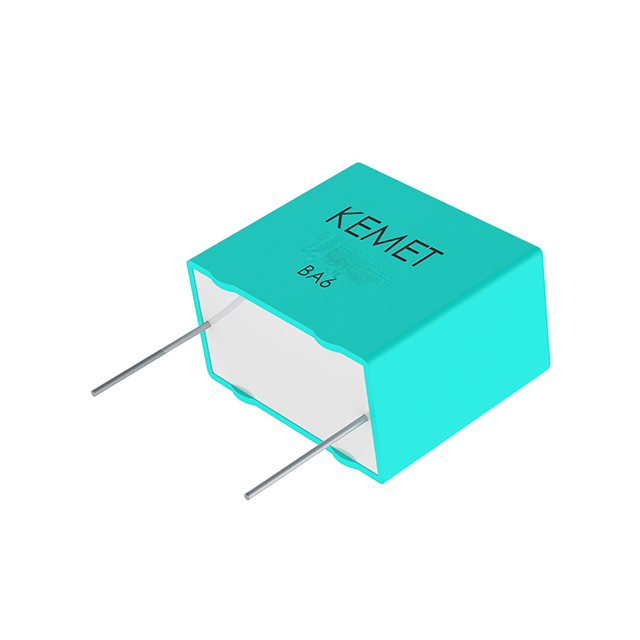

CAP FILM 0.47UF 560V PP 10%( 26.5 X 8.5 X 17MM) RADIAL PLASTIC RECTANGULAR CAN 22.5MM 105°C BAG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Capacitance	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	Mounting Type	Lead Spacing	Lead Spacing	Package / Case	Voltage Rating - DC	Voltage Rating - AC	Applications
KEMET R75LN3470AA00K	-55 C	105 ░C	PC Pins	1.043 in	0.335 in	8.5 mm	26.5 mm	0.47 µF	10 %	0.673 in	17.1 mm	Polypropylene (PP) Metallized	Through Hole	0.886 in	22.5 mm	Radial	560 V	250 V	DC Filtering DC Link
KEMET R75LN34704000K	-55 C	105 ░C	PC Pins	1.043 in	0.335 in	8.5 mm	26.5 mm	0.47 µF	10 %	0.673 in	17.1 mm	Polypropylene (PP) Metallized	Through Hole	0.886 in	22.5 mm	Radial		250 V	DC Filtering DC Link
