PE4556 Series
Manufacturer: Pasternack
Beta
⌘K

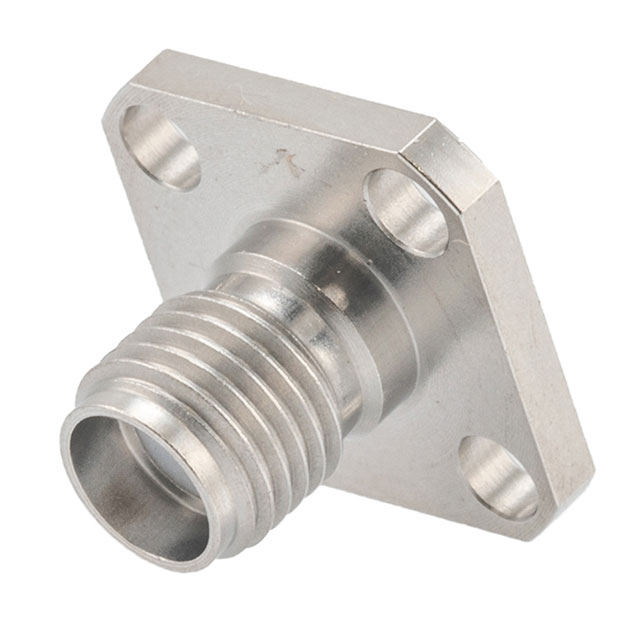

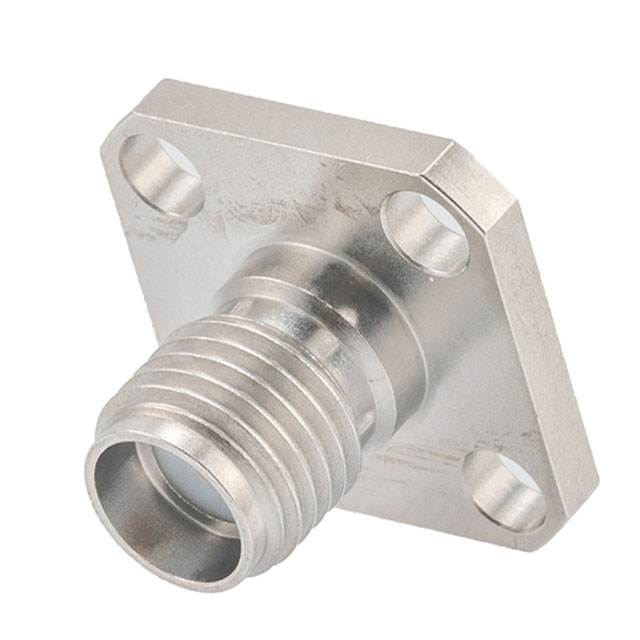

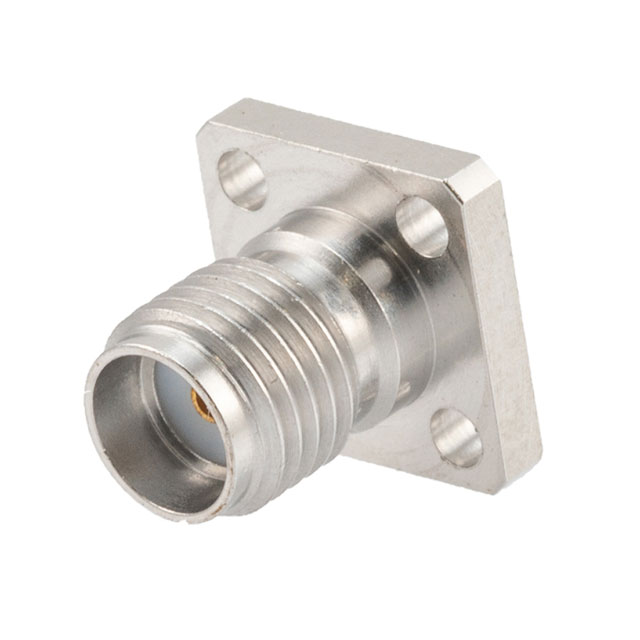

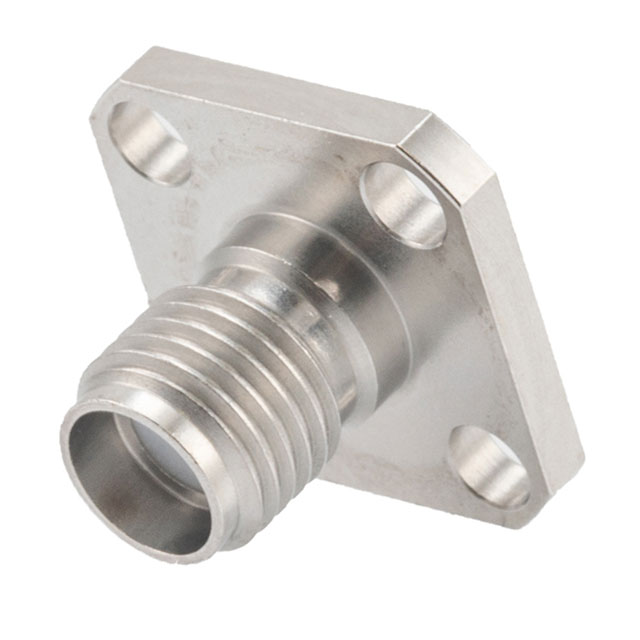

SMA(F) FLD RPL 4HOLE 0.020" PIN
| Part | Features | Shield Termination | Frequency - Max [Max] | Dielectric Material | Number of Ports | Mounting Feature | Center Contact Plating | Connector Style | Center Contact Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Connector Type | Mounting Type | Fastening Type | Impedance | Contact Termination | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pasternack | Field Replaceable For Hermetically Sealed Pin | Screw | 27 GHz | Polytetrafluoroethylene (PTFE) | 1 | Flange | Gold | SMA | Beryllium Copper | Stainless Steel | -65 ░C | 165 °C | Silver | Receptacle Female Socket | Panel Mount | Threaded | 50 Ohms | Compression | 500 |
 Pasternack | Field Replaceable For Hermetically Sealed Pin | Screw | 27 GHz | Polytetrafluoroethylene (PTFE) | 1 | Flange | Gold | SMA | Beryllium Copper | Stainless Steel | -65 ░C | 165 °C | Silver | Receptacle Female Socket | Panel Mount | Threaded | 50 Ohms | Compression | 500 |
 Pasternack | Field Replaceable For Hermetically Sealed Pin | Screw | 27 GHz | Polytetrafluoroethylene (PTFE) | 1 | Flange | Gold | SMA | Beryllium Copper | Stainless Steel | -65 ░C | 165 °C | Silver | Receptacle Female Socket | Panel Mount | Threaded | 50 Ohms | Compression | 500 |
 Pasternack | Field Replaceable For Hermetically Sealed Pin | Screw | 27 GHz | Polytetrafluoroethylene (PTFE) | 1 | Flange | Gold | SMA | Beryllium Copper | Stainless Steel | -65 ░C | 165 °C | Silver | Receptacle Female Socket | Panel Mount | Threaded | 50 Ohms | Compression | 500 |
 Pasternack | Field Replaceable For Hermetically Sealed Pin | Screw | 27 GHz | Polytetrafluoroethylene (PTFE) | 1 | Flange | Gold | SMA | Beryllium Copper | Stainless Steel | -65 ░C | 165 °C | Silver | Receptacle Female Socket | Panel Mount | Threaded | 50 Ohms | Compression | 500 |
