338310 Series

Catalog

CONN D-SUB PLUG 15POS VERT SLDR

Part	Dielectric Material	Number of Positions	Color	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Type	Connector Type	Connector Style	Contact Finish	Number of Rows	Termination	Flange Feature	Material Flammability Rating	Contact Material	Features	Shell Size, Connector Layout	Mounting Type
TE Connectivity Raychem Cable Protection 4-338310-2	Polyester Glass Filled	15	Black	105 ░C	-55 °C	6 A	Signal	Male Pins Plug	D-Sub	Gold	2	Solder	Female Screwlock (M3) Mating Side	UL94 V-0	Phosphor Bronze	Board Lock Grounding Indents	2	Through Hole

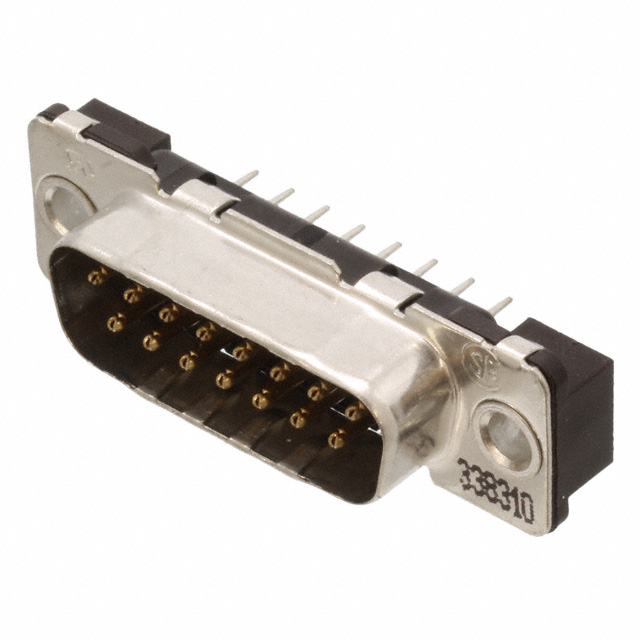

TE Connectivity Raychem Cable Protection 5-338310-2	Polyester Glass Filled	15	Black	105 ░C	-55 °C	6 A	Signal	Male Pins Plug	D-Sub	Gold	2	Solder	Housing/Shell (Unthreaded)	UL94 V-0	Phosphor Bronze	Grounding Indents	2	Through Hole

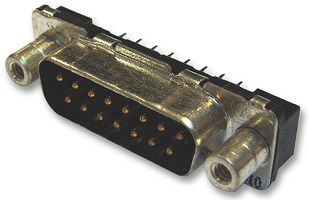

TE Connectivity Raychem Cable Protection 3-338310-2	Polyester Glass Filled	15	Black	105 ░C	-55 °C	6 A	Signal	Male Pins Plug	D-Sub	Gold	2	Solder	Female Screwlock (4-40) Mating Side	UL94 V-0	Phosphor Bronze	Board Lock Grounding Indents	2	Through Hole
TE Connectivity Raychem Cable Protection 7-338310-2	Polyester Glass Filled	15	Black	105 ░C	-55 °C	6 A	Signal	Male Pins Plug	D-Sub	Gold	2	Solder	Housing/Shell (M3)	UL94 V-0	Phosphor Bronze	Grounding Indents	2	Through Hole
